Unit Sekrup Suhu Tinggi RFC
Unit sekrup suhu tinggi RFC adalah sistem pendingin efisiensi tinggi yang dirancang khusus untuk lingkungan bersuhu tinggi. Ini banyak digunakan dalam industri seperti petrokimia, metalurgi, pembangkit listrik, dan pemrosesan mekanis untuk pendinginan suhu tinggi dan kebutuhan pendinginan industri. Unit ini menggunakan teknologi kompresor sekrup canggih, menawarkan stabilitas sangat tinggi, kebisingan rendah, dan efisiensi energi yang sangat baik. Fitur utama unit sekrup suhu tinggi RFC adalah kemampuannya untuk mempertahankan kinerja pendinginan yang sangat baik di lingkungan bersuhu tinggi, memberikan dukungan pendinginan yang stabil untuk berbagai proses industri.
Unit sekrup suhu tinggi RFC dilengkapi dengan kompresor berkinerja tinggi yang memanfaatkan teknologi terdepan di industri untuk meningkatkan efisiensi pendinginan. Ini mengurangi konsumsi energi sekaligus memperpanjang masa pakai peralatan. Unit ini juga dilengkapi dengan sistem kendali cerdas yang dapat memantau parameter operasional secara real time dan secara otomatis menyesuaikan status pengoperasian berdasarkan variasi beban, mengoptimalkan kinerja pendinginan dan efisiensi energi. Dengan teknologi kontrol canggih, pengguna dapat memantau status operasional peralatan kapan saja, memastikan stabilitas dan efisiensi tinggi dalam kondisi kerja apa pun.
Pengenalan Parameter Peralatan
Tampilan Detail
Hubungi Kami
Pengenalan Parameter Peralatan
| Model Satuan | Kamera.Model (RFC) | Com, Keakuratan | Kondensasi suhu.,(℃） | Suhu Penguapan. (℃) | waduk (kiri) | Pipa pasokan (mm） | Hisap pipa (mm） | Jalan Keluar Gas pipa (mm） | cair pipa masuk (mm） | Dimensi (mm) (PxL×T) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-RFCF-40H | SLG120 -40 (40HP) | 1 | 35 | 60.0 | 23.4 | 73.1 | 23.7 | 88.2 | 24.2 | 105.2 | 24.5 | 124.2 | 24.9 | 100 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 56.0 | 26.4 | 68.4 | 26.5 | 82.9 | 26.6 | 99.5 | 27.0 | 118.2 | 37.6 | |||||||||
| 45 | 51.5 | 27.3 | 63.3 | 27.9 | 77.4 | 28.5 | 93.7 | 29.2 | 112.1 | 29.9 | |||||||||
| LXPL-BRFCF2 -80 jam | 2 | 35 | 120.0 | 46.8 | 146.2 | 47.4 | 176.4 | 48.4 | 210.4 | 49.0 | 248.4 | 498 | 200 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 112.0 | 528 | 136.8 | 53.0 | 165.8 | 53.2 | 199.0 | 54.0 | 236.4 | 55.2 | |||||||||
| 45 | 103.0 | 54.6 | 126.6 | 55.8 | 352.8 | 57.8 | 187.4 | 58.4 | 224.2 | 59.8 | |||||||||
| LXPL-BRFCF3 -120 jam | 3 | 35 | 180.0 | 70.2 | 219.3 | 71.1 | 264.6 | 72.6 | 315.6 | 73.5 | 372.6 | 74.7 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 168.0 | 79.2 | 205.2 | 79.3 | 248.7 | 79.8 | 298.5 | 81.0 | 354.6 | 82.8 | |||||||||
| 45 | 154.5 | 81.9 | 189.9 | 83.1 | 232.2 | 85.5 | 281.1 | 87.6 | 366.3 | 89.7 | |||||||||
| LXPL-BRFCF4 -140 jam | 4 | 35 | 240.0 | 93.6 | 292.4 | 94.8 | 352.8 | 96.8 | 420.8 | 98.0 | 496.8 | 99.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 224.0 | 105.6 | 373.6 | 106.0 | 331.6 | 106.4 | 398.0 | 108.0 | 472.8 | 110.4 | |||||||||
| 45 | 206.0 | 109.0 | 253.2 | 111.6 | 309.6 | 114.0 | 374.8 | 116.8 | 448.4 | 119.6 | |||||||||
| LXPL-RFCF-50H | SLG140 -50 (50HP) | 1 | 35 | 69.9 | 27.3 | 85.1 | 27.5 | 1026 | 28.1 | 122.5 | 28.5 | 144.5 | 28.9 | 150 | Φ28 | Φ76 | Φ57 | Φ45 | 1800×1400×1500 |
| 40 | 65.1 | 30.7 | 79.6 | 30.8 | 96.5 | 31.0 | 115.8 | 31.4 | 137.6 | 32.1 | |||||||||
| 45 | 60.0 | 31.8 | 73.7 | 32.5 | 90.1 | 33.2 | 109.1 | 33.9 | 130.5 | 34.8 | |||||||||
| LXPL-BRFCF2 -100 jam | 2 | 35 | 139.8 | 54.6 | 170.2 | 55.0 | 205.2 | 56.2 | 245.0 | 57.0 | 289.0 | 57.8 | 200 | Φ35 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 130.2 | 61.4 | 159.2 | 61.6 | 193.0 | 62.0 | 231.6 | 62.8 | 275.2 | 64.2 | |||||||||
| 45 | 120.0 | 63.6 | 147.4 | 65.0 | 180.2 | 66.4 | 218.2 | 67.8 | 261.0 | 69.6 | |||||||||
| LXPL-BRFCF3 -150 jam | 3 | 35 | 209.7 | 81.9 | 255.3 | 82.5 | 307.8 | 84.3 | 367.5 | 85.5 | 433.5 | 86.7 | 250 | Φ45 | Φ108 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 1953 | 92.1 | 238.8 | 92.4 | 289.5 | 93.0 | 347.4 | 94.2 | 412.8 | 96.3 | |||||||||
| 45 | 180.0 | 95.4 | 221.1 | 97.5 | 270.3 | 99.6 | 327.3 | 101.7 | 391.5 | 104.4 | |||||||||
| LXPL-BRFCF4 -200 jam | 4 | 35 | 279.6 | 109.2 | 340.4 | 110.0 | 410.4 | 112.4 | 490.0 | 114.0 | 578.0 | 1156 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 260.4 | 1228 | 318.4 | 123.2 | 386.0 | 124.0 | 463.2 | 125.6 | 550.4 | 128.4 | |||||||||
| 45 | 240.0 | 127.2 | 294.8 | 130.0 | 360.4 | 1328 | 436.4 | 1356 | 522.0 | 139.2 | |||||||||
| LXPL-RFCF-60H | SLG160 -60 (60HP) | 1 | 35 | 77.1 | 30.1 | 93.9 | 30.4 | 113.2 | 31.0 | 135.2 | 35.1 | 159.5 | 31.9 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×2000×1700 |
| 40 | 71.9 | 33.8 | 87.8 | 34.0 | 106.5 | 34.2 | 127.8 | 34.6 | 151.9 | 35.4 | |||||||||
| 45 | 662 | 35.0 | 81.4 | 358 | 99.4 | 36.7 | 120.3 | 37.5 | 144.0 | 38.4 | |||||||||
| LXPL-BRFCF2 -120 jam | 2 | 35 | 154.2 | 602 | 187.8 | 60.8 | 226.4 | 620 | 270.4 | 63.0 | 319.0 | 638 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 143.8 | 67.6 | 175.6 | 68.0 | 2130 | 68.4 | 255.6 | 692 | 3038 | 70.8 | |||||||||
| 45 | 132.4 | 70.0 | 162.8 | 71.6 | 198.8 | 73.4 | 240.6 | 75.0 | 288.0 | 76.8 | |||||||||
| LXPL-BRFCF3 -180 jam | 3 | 35 | 231.3 | 90.3 | 281.7 | 91.2 | 3396 | 930 | 4056 | 94.5 | 478.5 | 95.7 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 215.7 | 101.4 | 263.4 | 102.0 | 319.5 | 102.6 | 383.4 | 103.8 | 455.1 | 106.2 | |||||||||
| 45 | 198.6 | 105.0 | 244.2 | 107.4 | 298.2 | 110.1 | 360.9 | 112.5 | 4320 | 115.2 | |||||||||
| LXPL-BRFCF4 -240 jam | 4 | 35 | 308.4 | 120.4 | 375.6 | 121.6 | 452.8 | 124.0 | 540.8 | 126.0 | 638.0 | 127.6 | 350 | Φ57 | Φ108 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 287.6 | 135.2 | 351.2 | 136.0 | 426.0 | 136.8 | 511.2 | 138.4 | 607.6 | 141.6 | |||||||||
| 45 | 264.8 | 140.0 | 325.6 | 143.2 | 397.6 | 146.8 | 481.2 | 150.0 | 576.0 | 153.6 | |||||||||
| Model Satuan | Com.Model (RFC) | Com. Keakuratan | Kondensasi suhu. (℃) | Suhu Penguapan. (℃) | Reservasi (kiri) | Pasokan pipa (mm) | Hisap pipa (mm) | Jalan Keluar Gas pipa (mm) | cair pipa masuk (mm) | Dimensi (mm) (P×L×T) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-RFCF-40H | SLG190 -65 (65HP) | 1 | 35 | 97.4 | 37.6 | 118.1 | 38.0 | 143.1 | 38.8 | 170.8 | 39.4 | 201.5 | 39.9 | 150 | Φ35 | Φ76 | Φ45 | Φ45 | 2200×1500×1700 |
| 40 | 90.8 | 42.3 | 111.0 | 42.5 | 134.6 | 42.7 | 161.5 | 43.3 | 191.9 | 44.3 | |||||||||
| 45 | 83.6 | 43.8 | 102.8 | 44.8 | 125.6 | 45.8 | 152.1 | 46.9 | 182.0 | 48.0 | |||||||||
| LXPL-BRFCF2 -130 jam | 2 | 35 | 194.8 | 75.2 | 237.4 | 76.0 | 286.2 | 77.6 | 341.6 | 78.8 | 403.0 | 79.8 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 181.6 | 84.6 | 222.0 | 85.0 | 269.6 | 85.4 | 323.0 | 86.6 | 383.8 | 88.6 | |||||||||
| 45 | 167.2 | 87.6 | 205.6 | 896 | 251.2 | 91.6 | 304.2 | 93.8 | 364.0 | 96.0 | |||||||||
| LXPL-BRFCF3 -195 jam | 3 | 35 | 292.2 | 112.8 | 356.1 | 114.0 | 429.3 | 116.4 | 512.4 | 118.2 | 604.5 | 119.7 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 272.4 | 126.9 | 333.0 | 127.5 | 403.8 | 128.1 | 484.5 | 129.9 | 575.7 | 132.9 | |||||||||
| 45 | 250.8 | 131.4 | 308.4 | 134.4 | 376.8 | 137.4 | 456.3 | 140.7 | 546.0 | 144.0 | |||||||||
| LXPL-BRFCF4 -260 jam | 4 | 35 | 389.6 | 150.4 | 474.8 | 152.0 | 572.4 | 1552 | 6832 | 157.6 | 806.0 | 159.6 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 363.2 | 169.2 | 444.0 | 170.0 | 538.4 | 170.8 | 646.0 | 173.2 | 767.6 | 177.2 | |||||||||
| 45 | 334.4 | 175.2 | 411.2 | 179.2 | 502.4 | 183.2 | 608.4 | 187.6 | 728.0 | 192.0 | |||||||||
| LXPL-RFCF-70H | SLG210 -70 (70HP) | 1 | 35 | 103.4 | 40.3 | 125.9 | 40.7 | 151.8 | 41.6 | 181.2 | 422 | 213. | 42.8 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 96.3 | 45.5 | 117.7 | 45.6 | 142.8 | 45.8 | 171.3 | 46.4 | 203.5 | 47.5 | |||||||||
| 45 | 88.7 | 47.0 | 109.0 | 48.0 | 133.2 | 49.1 | 161.3 | 50.2 | 193.0 | 51.5 | |||||||||
| LXPL-BRFCF2 -140 jam | 2 | 35 | 206.8 | 80.6 | 251.8 | 81.4 | 303.6 | 83.2 | 362.4 | 84.4 | 427.4 | 85.6 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 192.6 | 90.8 | 235.4 | 91.2 | 285.6 | 91.6 | 342.6 | 92.8 | 407.0 | 95.0 | |||||||||
| 45 | 177.4 | 94.0 | 218.0 | 96.0 | 266.4 | 98.2 | 322.6 | 100.4 | 386.0 | 103.0 | |||||||||
| LXPL-BRFCF3 -210 jam | 3 | 35 | 310.2 | 120.9 | 377.7 | 122.1 | 455.4 | 124.8 | 543.6 | 126.6 | 641.1 | 128.4 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 288.9 | 136.2 | 353.1 | 136.8 | 428.4 | 137.4 | 713.9 | 139.2 | 610.5 | 142.5 | |||||||||
| 45 | 266.1 | 141.0 | 327.0 | 144.0 | 399.6 | 147.3 | 483.9 | 150.6 | 579.0 | 154.5 | |||||||||
| LXPL-BRFCF4 -280 jam | 4 | 35 | 413.6 | 161.2 | 503.6 | 162.8 | 607.2 | 166.4 | 724.8 | 168.8 | 854.8 | 171.2 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 385.2 | 181.6 | 470.8 | 182.4 | 571.2 | 83.2 | 685.2 | 185.6 | 814.0 | 190.0 | |||||||||
| 45 | 354.8 | 188.0 | 436.0 | 192.0 | 532.8 | 196.4 | 645.2 | 200.8 | 772.0 | 206.0 | |||||||||
| LXPL-RFCF-80H | SLG230 -80 (80HP) | 1 | 35 | 115.7 | 45.1 | 140.9 | 45.6 | 1698 | 46.5 | 202.7 | 47.2 | 239.2 | 47.9 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 107.8 | 50.8 | 131.7 | 51.0 | 1598 | 51.2 | 191.7 | 51.9 | 2278 | 53.1 | |||||||||
| 45 | 99.2 | 52.5 | 122.0 | 53.8 | 149. | 55.0 | 180.5 | 562 | 216.0 | 57.6 | |||||||||
| LXPL-BRFCF2 -160 jam | 2 | 35 | 231.4 | 90.2 | 281.8 | 91.2 | 339.6 | 93.0 | 405.4 | 94.4 | 478.4 | 958 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 215.6 | 1016 | 263.4 | 102.0 | 319.6 | 102.4 | 383.4 | 103.8 | 455.6 | 106.2 | |||||||||
| 45 | 198.4 | 105.0 | 244.0 | 107.6 | 298.2 | 110.0 | 361.0 | 112.4 | 432.0 | 115.2 | |||||||||
| LXPL-BRFCF3 -240 jam | 3 | 35 | 347.1 | 135.3 | 422.7 | 136,8! | 509.4 | 139.54 | 608.1 | 141.6 | 717.6 | 143.7 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 323.4 | 152.4 | 395.1 | 153.0 | 479.4 | 153.6 | 575.1 | 155.7 | 683.4 | 159.3 | |||||||||
| 45 | 297.6 | 157.5 | 366.0 | 161.4 | 447.3 | 1650 | 541.5 | 168.6 | 648.0 | 172.8 | |||||||||
| LXPL-BRFCF4 -320 jam | 4 | 35 | 462.8 | 180.4 | 536.6 | 182.4 | 679.2 | 186.0 | 810.8 | 188.8 | 956.8 | 191.6 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4500×2000×1800 | |
| 40 | 431.2 | 203.2 | 5268 | 204.0 | 639.2 | 204.8 | 7668 | 207.6 | 911.2 | 212.4 | |||||||||
| 45 | 396.8 | 210.0 | 488.0 | 215.2 | 596.4 | 220.0 | 722.0 | 224.8 | 864.0 | 230.4 | |||||||||
| Model Satuan | Com.Model (RFC) | Com, Keakuratan | Kondensasi suhu. (℃） | Suhu Penguapan. (℃) | waduk (kiri) | Pipa pasokan (mm) | Hisap pipe (mm) | Jalan Keluar Gas (mm) | cair pipa masuk (mm) | Dimensi (mm) (PxL×T) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-RFCF-90H | SLG250 -90 (90HP) | 1 | 35 | 123.0 | 48.0 | 149.9 | 48.5 | 180.7 | 49.5 | 215.1 | 50.3 | 2554 | 51.0 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 114.7 | 54.0 | 140.1 | 54.3 | 170.0 | 54.5 | 203.9 | 55.3 | 2423 | 56.5 | |||||||||
| 45 | 105.5 | 55.9 | 129.8 | 57.2 | 158.6 | 58.5 | 192.0 | 59.8 | 229.8 | 61.3 | |||||||||
| LXPL-BRFCF2 -180 jam | 2 | 35 | 246.0 | 96.0 | 299.8 | 97.0 | 361.4 | 99.0 | 431.4 | 100.6 | 508.8 | 102.0 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 229.4 | 108.0 | 280.2 | 108.6 | 340.0 | 109.0 | 407.8 | 110.6 | 484.6 | 113.0 | |||||||||
| 45 | 211.0 | 111.8 | 258.0 | 114.4 | 317.2 | 117.0 | 384.0 | 119.6 | 4596 | 122.6 | |||||||||
| LXPL-BRFCF3 -270 jam | 3 | 35 | 369.0 | 144.0 | 449.7 | 145.5 | 542.1 | 148.5 | 647.1 | 150.9 | 7632 | 153.0 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 344.1 | 162.0 | 420.3 | 162.9 | 510.0 | 163.5 | 611.7 | 165.9 | 726.9 | 169.5 | |||||||||
| 45 | 316.5 | 167.6 | 389.4 | 171.6 | 475.8 | 175.5 | 576.0 | 179.4 | 689.4 | 183.9 | |||||||||
| LXPL-BRFCF4 -360 jam | 4 | 35 | 492.0 | 1920 | 599.6 | 194.0 | 722.8 | 198.0 | 862.8 | 201.2 | 1017.6 | 204.0 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4500×2000×1900 | |
| 40 | 458.8 | 216.0 | 560.4 | 217.2 | 680.0 | 218.0 | 815.6 | 221.2 | 9692 | 226.0 | |||||||||
| 45 | 422.0 | 2236 | 519.2 | 228.8 | 634.4 | 234.0 | 768.0 | 2392 | 919.2 | 245.2 | |||||||||
| LXPL-RFCF -100 jam | SLG290 -100 (100HP) | 1 | 35 | 145.2 | 56.6 | 176.9 | 57.2 | 213.2 | 58.4 | 254.5 | 59.3 | 300.2 | 60.1 | 200 | Φ36 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 135.3 | 63.7 | 165.4 | 64.0 | 200.5 | 64.3 | 240.7 | 65.2 | 285.9 | 66.7 | |||||||||
| 45 | 124.5 | 66.0 | 153.2 | 67.5 | 187.2 | 69.0 | 226.6 | 70.5 | 271.1 | 72.3 | |||||||||
| LXPL-BRFCF2 -200 jam | 2 | 35 | 290.4 | 113.2 | 353.8 | 114.4 | 426.4 | 116.8 | 5090 | 118.6 | 600.4 | 120.2 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2000×1800 | |
| 40 | 270.6 | 127.4 | 330.8 | 128.0 | 401.0 | 128.6 | 481.4 | 130.4 | 571.8 | 133.4 | |||||||||
| 45 | 249.0 | 132.0 | 306.4 | 135.0 | 374.4 | 138.0 | 453.2 | 141.0 | 542.2 | 144.6 | |||||||||
| LXPL-BRFCF3 -300 jam | 3 | 35 | 435.6 | 1698 | 530.7 | 171.6 | 639.6 | 175.2 | 763.5 | 177.9 | 900.6 | 180.3 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 405.9 | 191.1 | 496.2 | 192.0 | 601.5 | 192.9 | 722.1 | 195.6 | 857.7 | 200.1 | |||||||||
| 45 | 373.5 | 198.0 | 459.6 | 202.5 | 561.6 | 207.0 | 679.8 | 211.5 | 813.3 | 216.9 | |||||||||
| LXPL-BRFCF4 -400 jam | 4 | 35 | 580.8 | 226.4 | 707.6 | 228.8 | 852.8 | 233.6 | 1018.0 | 237.2 | 1200.8 | 240.4 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 541.2 | 254.8 | 661.6 | 256.0 | 802.0 | 257.2 | 962.8 | 260.8 | 1143.6 | 266.8 | |||||||||
| 45 | 501.6 | 264.0 | 6128 | 270.0 | 748.8 | 276.0 | 906.4 | 282.0 | 1084.4 | 289.2 | |||||||||
| LXPL-RFCF -120 jam | SLG350 -120 (120HP) | 1 | 35 | 177.2 | 69.1 | 2158 | 69.8 | 260.2 | 71.3 | 310.6 | 72.4 | 366.4 | 73.4 | 250 | Φ57 | Φ89 | Φ76 | Φ45 | 2400×1600×1700 |
| 40 | 165.3 | 77.8 | 201.8 | 78.1 | 244.7 | 78.5 | 293.7 | 79.6 | 348.9 | 81.4 | |||||||||
| 45 | 152.0 | 80.5 | 186.9 | 82.4 | 228.4 | 84.2 | 276.5 | 86.1 | 330.9 | 88.2 | |||||||||
| LXPL-BRFCF2 -240 jam | 2 | 35 | 354.4 | 138.2 | 431.6 | 139.6 | 520.4 | 1426 | 621.2 | 144.8 | 732.8 | 146.8 | 400 | Φ76 | Φ108 | Φ89 | Φ76 | 2400×2000×1800 | |
| 40 | 330.4 | 1556 | 403.6 | 156.2 | 489.4 | 157.0 | 587.4 | 1592 | 697.8 | 162.8 | |||||||||
| 45 | 304.0 | 161.0 | 3738 | 164.8 | 456.8 | 168.4 | 553.0 | 172.2 | 661.8 | 176.4 | |||||||||
| LXPL-BRFCF3 -360 jam | 3 | 35 | 531.6 | 207.3 | 647.4 | 209.4 | 780.6 | 2139 | 931.8 | 217.2 | 1099.2 | 220.2 | 500 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 495.6 | 2334 | 632.4 | 234.3 | 734.1 | 235.5 | 881.1 | 2338 | 1046.7 | 244.2 | |||||||||
| 45 | 456.0 | 241.5 | 560.1 | 247.2 | 6852 | 2526 | 829.5 | 258.3 | 992.7 | 264.6 | |||||||||
| LXPL-BRFCF 4 -480 jam | 4 | 35 | 7088 | 376.4 | 863.2 | 279.2 | 1040.8 | 285.2 | 242.4 | 289.6 | 1465.6 | 293.6 | 600 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 660.8 | 311.2 | 807.2 | 312.4 | 978.8 | 314.0 | 1174.8 | 318.4 | 1395.6 | 3256 | |||||||||
| 45 | 608.0 | 322.0 | 747.6 | 329.6 | 913.6 | 3368 | 1106.0 | 344.4 | 323.6 | 3528 | |||||||||
| Model Satuan | Com.Model (RFC) | Com. Keakuratan | Kondensasi suhu. (℃) | Suhu Penguapan. (℃) | waduk (kiri) | Pasokan pipa (mm) | Hisap pipa (mm) | Jalan Keluar Gas pipe (mm) | cair pipa masuk (mm) | Dimensi (mm) (P×L×T) | ||||||||||
| -15 | -10 | -5 | 0 | 5 | ||||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | ||||||||||||||||||||
| LXPL-RFCF -140 jam | SLG420 -140 (140HP) | 1 | 35 | 206.7 | 80.6 | 251.8 | 81.5 | 303.6 | 83.2 | 362.3 | 84.4 | 427.4 | 85.6 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 | |
| 40 | 192.7 | 90.7 | 235.4 | 91.1 | 285.5 | 91.6 | 342.6 | 92.8 | 407.1 | 94.9 | ||||||||||
| 45 | 177.3 | 93.9 | 218.1 | 96.1 | 266.5 | 98.2 | 322.6 | 100.4 | 386.0 | 102.9 | ||||||||||
| LXPL-BRFCF2 -280 jam | 2 | 35 | 413.4 | 161.2 | 503.6 | 163.0 | 607.2 | 166.4 | 724.6 | 168.8 | 854.8 | 171.2 | 400 | Φ57 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | ||
| 40 | 385.4 | 181.4 | 470.8 | 182.2 | 571.0 | 183.2 | 6852 | 185.6 | 814.2 | 1898 | ||||||||||
| 45 | 354.6 | 187.8 | 436.2 | 192.2 | 533.0 | 1964 | 645.2 | 200.8 | 772.0 | 2058 | ||||||||||
| LXPL-BRFCF3 -420 jam | 3 | 35 | 620.1 | 241.8 | 755.4 | 244.5 | 910.8 | 249.6 | 1086.9 | 253.2 | 1417.2 | 256.8 | 600 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | ||
| 40 | 578.1 | 272.1 | 706.2 | 273.3 | 856.5 | 274.8 | 1027.8 | 378.4 | 1221.3 | 284.7 | ||||||||||
| 45 | 531.9 | 281.7 | 654.3 | 288.3 | 799.5 | 294.6 | 967.8 | 301.2 | 1158.0 | 308.7 | ||||||||||
| LXPL-BRFCF4 -560 jam | 4 | 35 | 8268 | 322.4 | 1007.2 | 326.0 | 1214.4 | 332.8 | 1449.2 | 337,6 jam | 709.66 | 342.4 | 800 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | ||
| 40 | 770.8 | 3268 | 941.6 | 364.4 | 142.0 | 366.4 | 1370.4 | 371.2 | 628.4 | 3796 | ||||||||||
| 45 | 7092 | 375.6 | 8724 | 384.4 | 1066.0 | 392.8 | 1290.4 | 401.6 | 1544.0 | 411.6 | ||||||||||
| LXPL-RFCF -180 jam | SLG520 -180 (180HP) | 1 | 35 | 255.9 | 99.8 | 311.7 | 100.9 | 375.8 | 103.0 | 448.6 | 104.5 | 529.2 | 106.0 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1700×1800 | |
| 40 | 238.6 | 112.3 | 291.5 | 112.8 | 353.5 | 113.4 | 424.2 | 114.9 | 504.0 | 117.5 | ||||||||||
| 45 | 219.5 | 116.3 | 270.0 | 119.0 | 3299 | 121.6 | 3994 | 124.3 | 477.9 | 127.5 | ||||||||||
| LXPL-BRFCF2 -360 jam | 2 | 35 | 511.8 | 199.6 | 6234 | 201.8 | 751.6 | 206.0 | 897.2 | 209.0 | 1058.4 | 212.0 | 500 | Φ76 | Φ133 | Φ89 | Φ76 | 3000×1800×1800 | ||
| 40 | 477.2 | 224.6 | 583.0 | 225.6 | 707.0 | 226.8 | 848.4 | 229.8 | 100.8 | 235.0 | ||||||||||
| 45 | 439.0 | 232.6 | 540.0 | 238.0 | 659.8 | 243.2 | 798.8 | 248.6 | 955.8 | 255.0 | ||||||||||
| LXPL-BRFCF3 -540 jam | 3 | 35 | 767.7 | 299.4 | 935.1 | 302.7 | 127.4 | 309.0 | 1345.8 | 313.5 | 1587.6 | 318.0 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | ||
| 40 | 7158 | 336.9 | 874.5 | 338.4 | 1060.5 | 340.2 | 272.6 | 344.1 | 1512.0 | 352.5 | ||||||||||
| 45 | 658.5 | 348.9 | 810.0 | 357.0 | 989.7 | 364.8 | 1198.2 | 372.9 | 1433.7 | 382.5 | ||||||||||
| LXPL-BRFCF4 -720 jam | 4 | 35 | 1023.6 | 399.2 | 1246.8 | 403.6 | 1503.2 | 412.0 | 1794.4 | 418.0 | 2116.8 | 424.0 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | ||
| 40 | 954.4 | 449.2 | 1166.0 | 451.2 | 1414.0 | 453.6 | 1696.8 | 459.6 | 2016.0 | 470.0 | ||||||||||
| 45 | 878.0 | 465.2 | 1080.0 | 476.0 | 1319.6 | 486.4 | 1597.6 | 497.2 | 1911.6 | 510.0 | ||||||||||
| LXPL-RFCF -210 jam | SLG640 -210 (210HP) | 1 | 35 | 314.4 | 122.6 | 383.0 | 123.9 | 461.7 | 126.5 | 551.1 | 128.4 | 650. | 130.2 | 350 | Φ57 | Φ108 | Φ89 | Φ76 | 2400×1700×1800 | |
| 40 | 293.1 | 138.0 | 358.1 | 138.6 | 434.3 | 1393 | 521.1 | 141.2 | 619.1 | 144.4 | ||||||||||
| 45 | 269.7 | 142.8 | 331.7 | 146.1 | 405.3 | 149.4 | 490.6 | 152.7 | 587.1 | 156.6 | ||||||||||
| LXPL-BRFCF2 -420 jam | 2 | 35 | 628.8 | 245.2 | 766.0 | 2478 | 9234 | 253.0 | 1102.2 | 256.8 | 1300.2 | 260.4 | 600 | Φ89 | Φ159 | Φ108 | Φ89 | 3000×1800×1800 | ||
| 40 | 586.24 | 276.0 | 7162 | 277.2 | 868.6 | 278.6 | 4042.2 | 282.4 | 12382 | 2888 | ||||||||||
| 45 | 539.4 | 2856 | 6334 | 292.2 | 810.6 | 298.8 | 981.2 | 305.4 | 1174.2 | 313.2 | ||||||||||
| LXPL-BRFCF3 630 jam | 3 | 35 | 943.2 | 367.8 | 1149.0 | 371.7 | 1385.1 | 379.59 | 653.3 | 385.2 | 1950.3 | 390.6 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | ||
| 40 | 879.3 | 414.0 | 1074.3 | |4158 | 1302.9 | 417.9 | 1563.3 | 423.6 | 1857.3 | 4332 | ||||||||||
| 45 | 809.1 | 428.4 | 995.1 | 438.3 | 1215.9 | 4482 | 1471.8 | 458.1 | 1761.3 | 4698 | ||||||||||
| LXPL-BRFCF4 -840 jam | 4 | 35 | 1257.6 | 490.4 | 1532.0 | |495.6 | 1846.8 | 506.0 | 2204.4 | 513.6 | 2600.4 | 520.8 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | ||
| 40 | 1172.4! | 552.0 | 1432.4 | 554.4 | 1737.2 | 557.2 | 2084.4 | 564.8 | 2746.4! | 577.6 | ||||||||||
| 45 | 1078.8 | 571.2 | 1326.8 | 584.4 | 1621.2 | 597.6 | 1962.4 | 610.8 | 2348.4 | 626.4 | ||||||||||

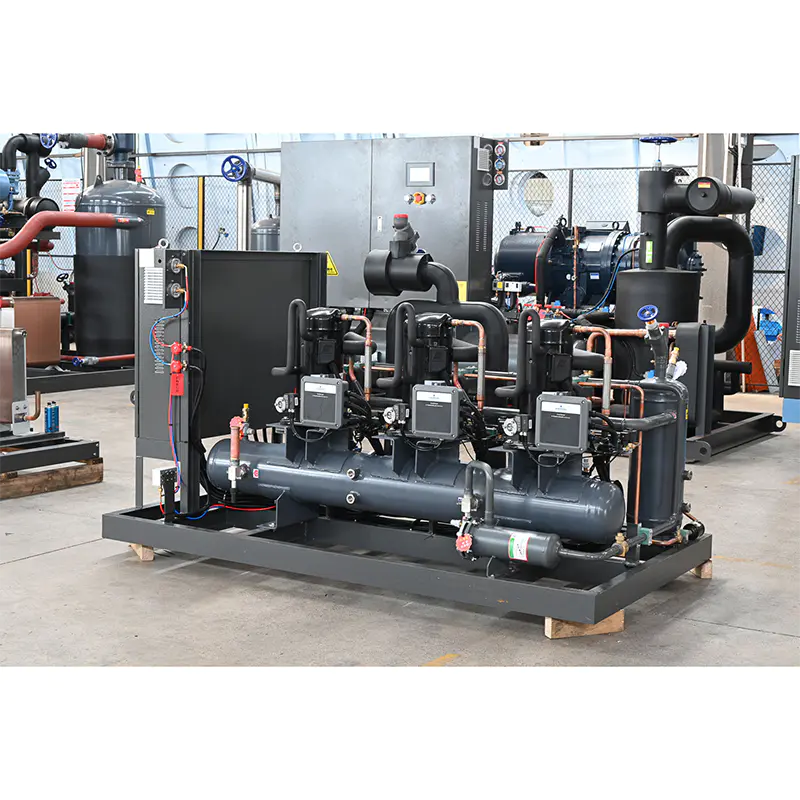

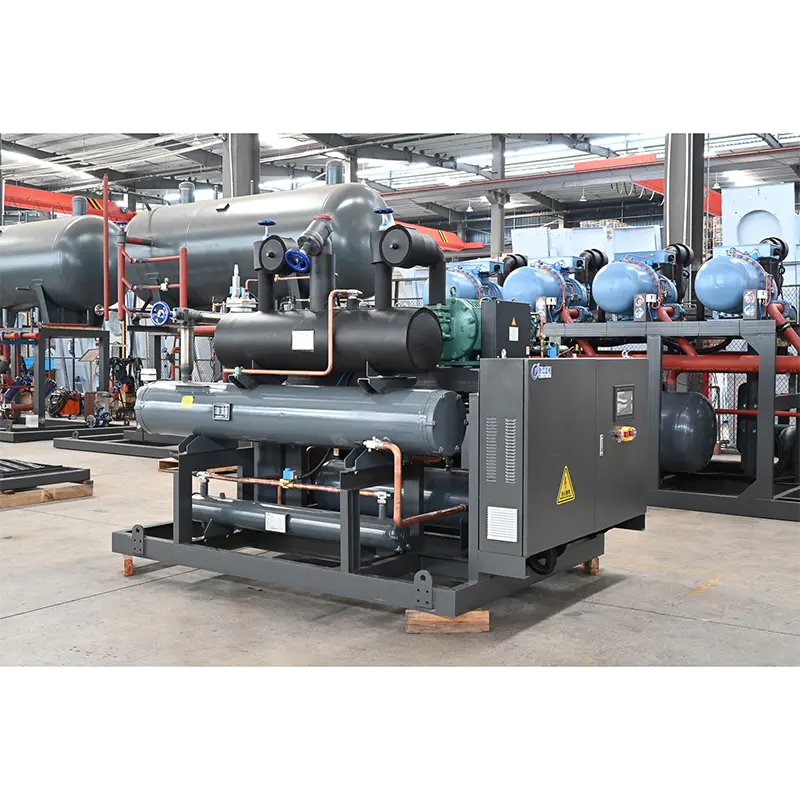

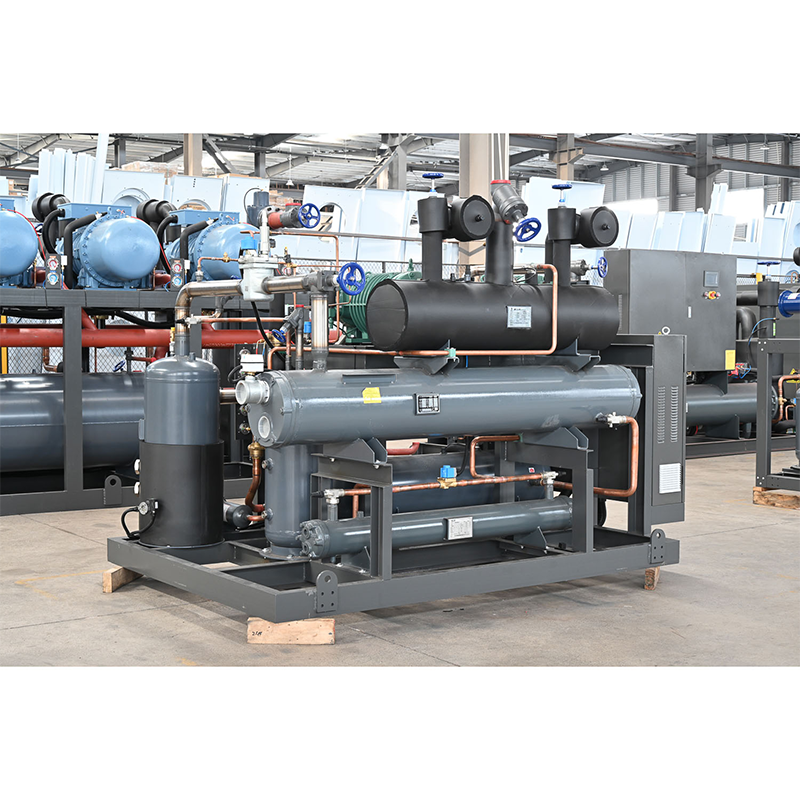

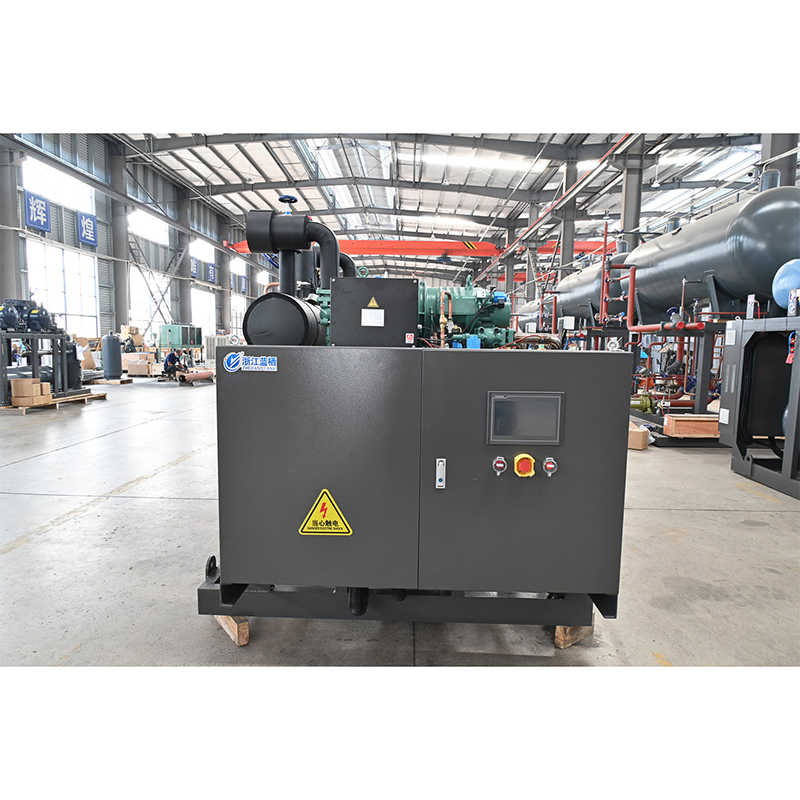

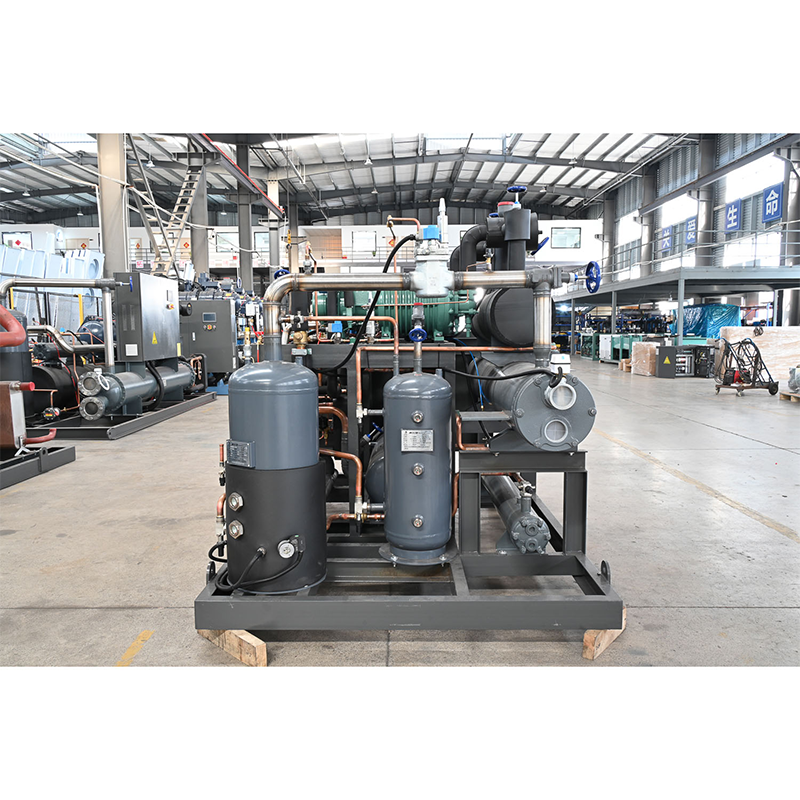

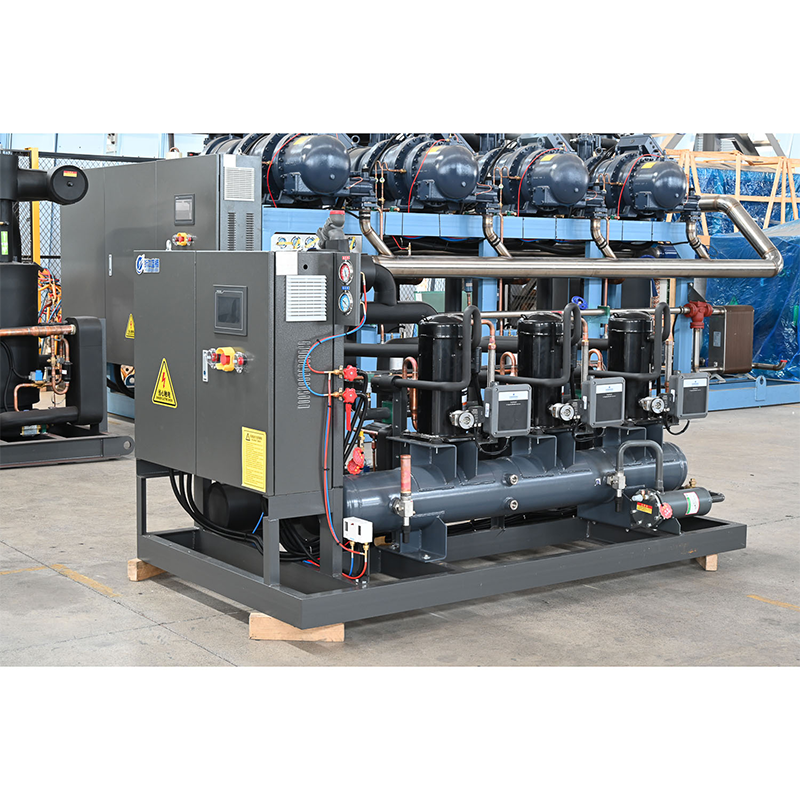

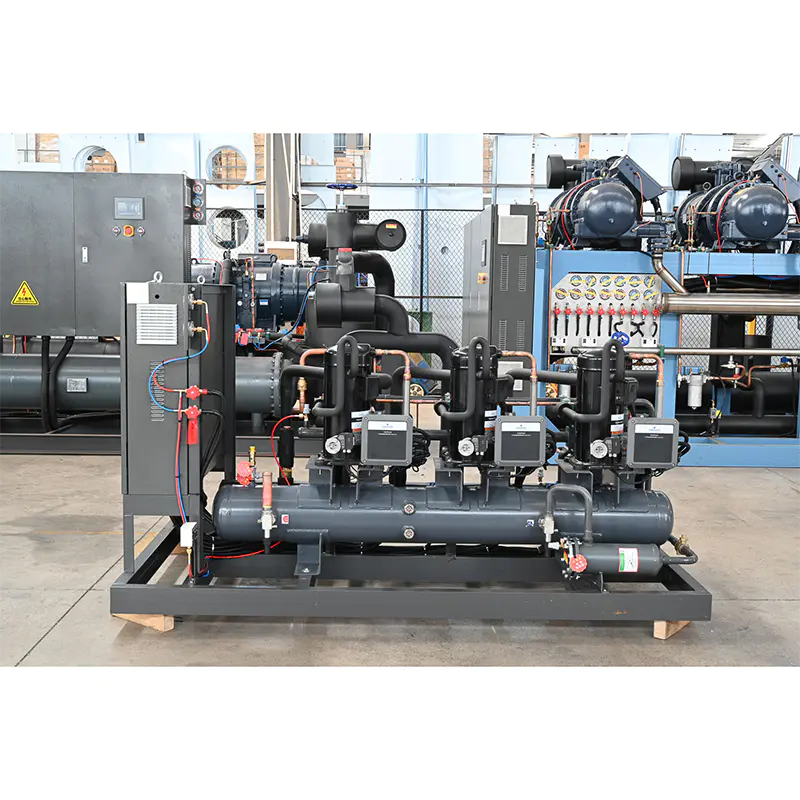

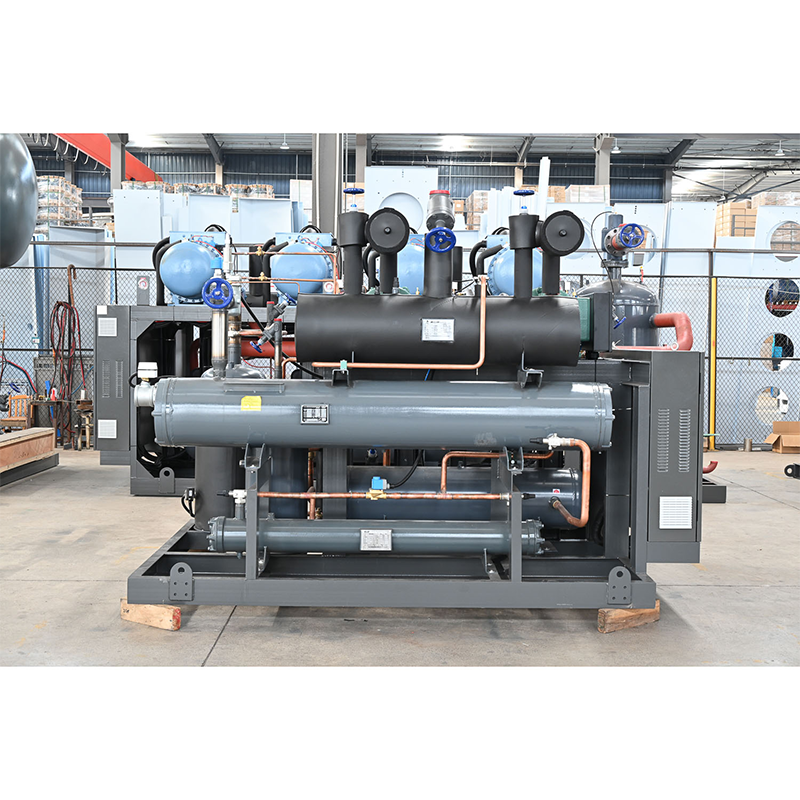

Tampilan Detail
Hubungi Kami
TENTANG KAMI
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Sebagai China Unit Sekrup Suhu Tinggi RFC Pemasok dan Unit Sekrup Suhu Tinggi RFC Pabrik,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. mengkhususkan diri dalam solusi pendinginan yang efisien, hijau, dan berkelanjutan. Dengan memanfaatkan produk berkualitas tinggi dan teknologi inovatif, kami melayani sektor makanan, farmasi, kimia, dan logistik rantai dingin, menciptakan sistem yang hemat energi dan ramah lingkungan bagi pelanggan kami serta mendorong perkembangan yang saling menguntungkan bagi industri dan lingkungan.
Sertifikat Penghargaan
Berita
-
Apa Itu Pendingin Udara Industri dan Bagaimana Cara Kerjanya dalam Sistem Pendingin? Bayangkan sebuah ruangan dingin berukuran sedang yang dibangun untuk menampung makanan beku pada suhu -22°C. Unit kompresor dan kondensor berad...
BACA SELENGKAPNYA -
Panduan Lengkap Pemilihan Kondensor: Pilih Kondensor yang Tepat untuk Sistem Industri & HVAC Kondensor adalah komponen perpindahan panas inti yang banyak digunakan dalam sistem HVAC, pendinginan industri, pemrosesan kimia, pembangkit ...
BACA SELENGKAPNYA -
Panduan kustomisasi OEM pemasok teknik penyimpanan dingin Seiring dengan meningkatnya permintaan pasar tersegmentasi dalam industri rantai dingin luar negeri, banyak pemasok dan pedagang teknik penyimpanan dingin bertujuan untuk menci...
BACA SELENGKAPNYA
HUBUNGI KAMI
TAUTAN CEPAT
PRODUK
INFORMASI KONTAK
- Email: [email protected]
- Telepon: +86-15258555916
- Alamat: 301 Punan Avenue, Jalan Pukou, Kota Shengzhou, Kota Shaoxing, Provinsi Zhejiang.China
Hak Cipta © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Hak Cipta Dilindungi.
浙ICP备2022034605号-1
Grosir Unit Sekrup Suhu Tinggi RFC Pabrik
