Unit Suhu Rendah FRASCOLD SPA
Selama proses desain, unit sekrup suhu rendah FRASCOLD SPA sepenuhnya memperhitungkan persyaratan untuk kemampuan pengoperasian berkelanjutan dan akurasi kontrol dalam kondisi suhu rendah. Melalui integrasi sistem yang rasional, produk ini memberikan dukungan pendinginan yang stabil dan andal untuk fasilitas penyimpanan beku, pemrosesan suhu rendah, dan aplikasi pendinginan industri terkait. Dalam hal konfigurasi daya inti, unit ini dilengkapi dengan kompresor ulir semi-hermetis dari merek ternama dalam dan luar negeri. Kompresor ini memiliki desain struktural yang matang dan mampu mempertahankan output yang stabil bahkan dalam kondisi pengoperasian suhu rendah, sehingga membantu meningkatkan efisiensi sistem pendingin secara keseluruhan. Selama pengoperasian, getaran terkendali dengan baik dan tingkat kebisingan relatif rendah, sehingga tidak hanya memperbaiki lingkungan ruang mesin namun juga meminimalkan dampak terhadap area kerja di sekitarnya. Kinerja mekanis yang stabil berkontribusi pada masa pakai kompresor yang lebih lama dan mengurangi kebutuhan perawatan selama pengoperasian jangka panjang.
Pada tingkat konfigurasi sistem, unit ini dilengkapi dengan komponen utama seperti pemisah oli, pendingin oli, penerima cairan, dan economizer, sehingga memungkinkan pengelolaan sirkulasi oli pelumas dan zat pendingin secara efektif. Penerapan economizer yang rasional membantu mengoptimalkan efisiensi energi sistem dalam kondisi suhu rendah, memungkinkan unit mempertahankan operasi yang stabil di berbagai rentang beban.
Pengenalan Parameter Peralatan

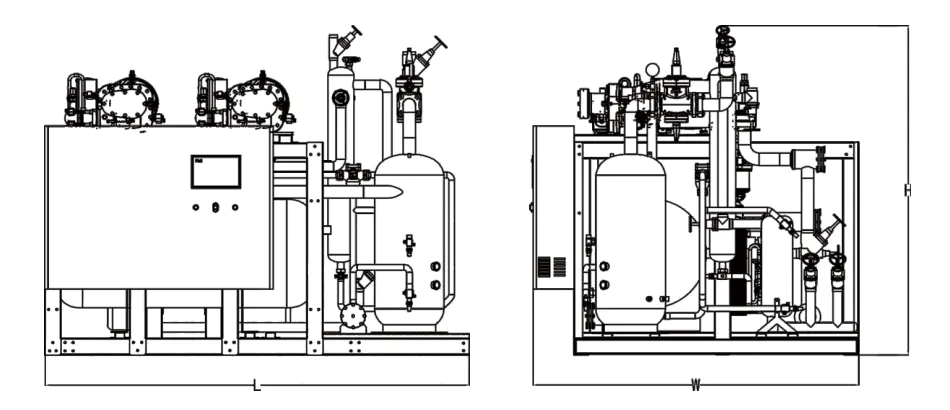

Tampilan Detail
Hubungi Kami
Pengenalan Parameter Peralatan
| Model Satuan | Com.Model | Com. Keakuratan | Kondensasi suhu. (℃) | Suhu Penguapan. (℃) | Waduk (kiri) | Pasokan pipa (mm) | Hisap pipa (mm) | Jalan Keluar Gas pipa (mm) | cair pipa masuk (mm) | Dimensi (mm) (PxL×T) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-FSF-30L | RTSL-30 -120Y (30HP) | 1 | 35 | 58.8 | 22.0 | 48.4 | 21.9 | 39.2 | 20.4 | 31.2 | 18.4 | 24.3 | 17.1 | 60 | Φ28 | Φ54 | Φ42 | Φ28 | 2300×1000×1500 |
| 40 | 55.0 | 25.5 | 46.5 | 23.3 | 37.6 | 21.3 | 29.8 | 19.7 | 23.0 | 18.4 | |||||||||
| 45 | 50.6 | 29.7 | 44.5 | 24.8 | 35.8 | 22.8 | 28.1 | 21.1 | 21.7 | 19.9 | |||||||||
| LXPL-BFSF2 -B0L | 2 | 35 | 117.6 | 44.0 | 96.8 | 43.8 | 78.5 | 40.8 | 62.4 | 36.8 | 48.6 | 34.2 | 120 | Φ28 | Φ89 | Φ54 | Φ35 | 2500×1800×1800 | |
| 40 | 110.0 | 51.0 | 93.0 | 46.6 | 75.1 | 42.6 | 59.6 | 39.4 | 46.0 | 36.8 | |||||||||
| 45 | 101.2 | 59.4 | 89.0 | 49.6 | 71.6 | 45.6 | 56.2 | 42.2 | 43.4 | 39.8 | |||||||||
| LXPL-BFSF3 -90L | 3 | 35 | 176.4 | 66.0 | 145.2 | 65.7 | 117.7 | 61.2 | 93.6 | 55.2 | 72.9 | 51.3 | 150 | Φ35 | Φ76×2 | Φ89 | Φ42 | 3200×1800×1800 | |
| 40 | 165.0 | 76.5 | 139.5 | 69.6 | 112.7 | 63.9 | 89.4 | 59.1 | 69.0 | 55.2 | |||||||||
| 45 | 151.8 | 89.1 | 133.5 | 74.4 | 107.4 | 68.4 | 84.3 | 63.3 | 65.1 | 59.7 | |||||||||
| LXPL-BFSF4 -120L | 4 | 35 | 235.2 | 88.8 | 193.6 | 87.6 | 159.6 | 81.6 | 124.8 | 73.6 | 97.2 | 68.4 | 200 | Φ35 | Φ89×2 | Φ89 | Φ42 | 3900×1800×1800 | |
| 40 | 220.0 | 102.0 | 186.0 | 93.2 | 150.3 | 85.2 | 119.2 | 78.8 | 92.0 | 73.6 | |||||||||
| 45 | 202.4 | 118.8 | 178.0 | 99.2 | 143.2 | 91.2 | 112.4 | 84.4 | 86.8 | 79.6 | |||||||||
| LXPL-FSF-40L | RTSL-40 -150 tahun (40HP) | 1 | 35 | 72.4 | 27.7 | 59.9 | 27.7 | 48.8 | 25.1 | 39.1 | 23.1 | 30.8 | 21.5 | 80 | Φ22 | Φ54 | Φ42 | Φ22 | 2300×1000×1500 |
| 40 | 68.4 | 31.7 | 57.9 | 29.0 | 47.1 | 26.6 | 37.6 | 24.6 | 29.3 | 23.1 | |||||||||
| 45 | 63.8 | 37.3 | 55.8 | 30.9 | 45.1 | 28.5 | 35.8 | 26.5 | 27.6 | 25.1 | |||||||||
| LXPL-BFSF2 -80L | 2 | 35 | 144.8 | 55.4 | 119.2 | 55.4 | 97.6 | 50.2 | 78.2 | 46.2 | 61.6 | 43.0 | 150 | Φ28 | Φ89 | Φ89 | Φ35 | 2500×1800×1800 | |
| 40 | 136.8 | 63.4 | 115.8 | 58.0 | 94.2 | 53.2 | 75.2 | 49.2 | 58.5 | 46.2 | |||||||||
| 45 | 127.6 | 74.6 | 111.6 | 61.8 | 90.2 | 57.0 | 71.6 | 53.0 | 55.2 | 50.0 | |||||||||
| LXPL-FSF3 -120L | 3 | 35 | 217.2 | 83.1 | 179.7 | 83.1 | 146.4 | 75.3 | 117.3 | 69.3 | 92.4 | 64.5 | 200 | Φ35 | Φ89 ×2 | Φ89 | Φ42 | 3200×1800×1800 | |
| 40 | 205.2 | 95.1 | 173.7 | 87.0 | 141.3 | 79.8 | 112.8 | 73.8 | 87.8 | 69.3 | |||||||||
| 45 | 191.4 | 111.9 | 167.4 | 92.7 | 135.3 | 85.5 | 107.4 | 79.5 | 82.8 | 75.3 | |||||||||
| LXPL-BFSF4 -160L | 4 | 35 | 289.6 | 110.8 | 239.6 | 110.8 | 195.2 | 100.4 | 156.4 | 92.4 | 123.2 | 86.0 | 250 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3900×1800×1800 | |
| 40 | 273.6 | 126.8 | 231.6 | 116.0 | 188.4 | 106.4 | 150.4 | 98.4 | 117.1 | 92.4 | |||||||||
| 45 | 255.2 | 149.2 | 223.2 | 123.6 | 180.4 | 144.0 | 143.2 | 106.0 | 110.4 | 100.4 | |||||||||
| LXPL-FSF-50L | RTSL2-50 -186Y (50HP) | 1 | 35 | 88.8 | 33.9 | 72.5 | 32.8 | 59.1 | 30.3 | 47.4 | 28.1 | 37.2 | 26.2 | 80 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 83.8 | 38.6 | 70.7 | 35.3 | 57.4 | 32.6 | 45.9 | 30.2 | 35.8 | 28.4 | |||||||||
| 45 | 72.8 | 45.6 | 68.5 | 38.1 | 55.4 | 35.2 | 44.0 | 32.7 | 34.0 | 31.0 | |||||||||
| LXPL-BFSF2 -100L | 2 | 35 | 177.6 | 67.8 | 145.0 | 65.6 | 118.2 | 60.6 | 94.8 | 56.2 | 74.4 | 52.4 | 200 | Φ35 | Φ108 | Φ89 | Φ42 | 2500×2000×1850 | |
| 40 | 167.6 | 77.2 | 141.4 | 70.6 | 114.8 | 65.2 | 91.8 | 60.4 | 71.6 | 56.8 | |||||||||
| 45 | 156.4 | 91.2 | 137.0 | 76.2 | 110.8 | 70.4 | 88.0 | 65.4 | 68.0 | 62.0 | |||||||||
| LXPL-BFSF3 -150L | 3 | 35 | 266.4 | 101.7 | 217.5 | 98.4 | 177.3 | 90.9 | 142.2 | 84.3 | 111.6 | 78.6 | 250 | Φ42 | Φ108 ×2 | Φ89 | Φ54 | 4100×1950×1750 | |
| 40 | 251.4 | 115.8 | 212.1 | 105.9 | 172.2 | 97.8 | 137.7 | 90.6 | 107.4 | 85.2 | |||||||||
| 45 | 234.6 | 136.8 | 205.5 | 114.3 | 166.2 | 105.6 | 132.0 | 98.1 | 102.0 | 93.0 | |||||||||
| LXPL-BFSF4 -200L | 4 | 35 | 355.2 | 135.6 | 290.0 | 131.2 | 236.4 | 121.2 | 189.6 | 112.4 | 148.8 | 104.8 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 4950×1950×1800 | |
| 40 | 335.2 | 154.4 | 282.8 | 141.2 | 229.6 | 130.4 | 183.6 | 120.8 | 143.2 | 113.6 | |||||||||
| 45 | 312.8 | 182.4 | 274.0 | 152.4 | 211.2 | 140.8 | 176.0 | 130.8 | 136.0 | 124.0 | |||||||||
| Model Satuan | Com.Mode | Com. Keakuratan | Kondensasi suhu. (℃) | Suhu Penguapan. (℃) | Wadukr (kiri) | Pasokan pipa (mm) | Hisap pipa (mm) | Jalan Keluar Gas pipa (mm) | cair pipa masuk (mm) | Dimensi (mm) (P×L×T) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-FSF-60L | RTSL2-60 -210 tahun (60HP) | 1 | 35 | 100.8 | 38.7 | 83.3 | 38.3 | 67.9 | 34.8 | 54.4 | 31.7 | 48.2 | 27.0 | 100 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 95.1 | 44.4 | 80.6 | 40.4 | 65.4 | 36.8 | 52.2 | 33.6 | 40.7 | 30.9 | |||||||||
| 45 | 88.7 | 51.8 | 77.6 | 42.9 | 62.8 | 39.3 | 49.8 | 36.2 | 38.4 | 33.7 | |||||||||
| LXPL-BFSF2 -120L | 2 | 35 | 201.6 | 77.4 | 166.6 | 76.6 | 135.8 | 69.6 | 108.8 | 63.4 | 85.6 | 54.0 | 200 | Φ35 | Φ108 | Φ89 | Φ42 | 2500×2000×1800 | |
| 40 | 190.2 | 88.8 | 161.2 | 80.8 | 130.9 | 73.6 | 104.4 | 67.2 | 81.4 | 61.8 | |||||||||
| 45 | 177.4 | 103.6 | 155.2 | 85.8 | 125.6 | 78.6 | 99.6 | 72.4 | 76.8 | 67.4 | |||||||||
| LXPL-BFSF3 -180L | 3 | 35 | 324.4 | 116.1 | 249.9 | 114.9 | 203.7 | 104.4 | 163.2 | 95.1 | 128.4 | 81.0 | 300 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3200×1850×1800 | |
| 40 | 285.3 | 133.2 | 241.8 | 121.2 | 196.3 | 110.4 | 156.6 | 100.8 | 122. | 92.7 | |||||||||
| 45 | 266.1 | 155.4 | 232.8 | 128.7 | 188.4 | 117.9 | 149.4 | 108.6 | 115.2 | 101.1 | |||||||||
| LXPL-BFSF4 -240L | 4 | 35 | 403.2 | 154.8 | 333.2 | 153.2 | 271.6 | 139.2 | 217.6 | 126.8 | 171.2 | 108.0 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3900×1850×1800 | |
| 40 | 380.4 | 177.6 | 322.4 | 161.6 | 261.7 | 147.2 | 208.8 | 133.4 | 162.8 | 123.6 | |||||||||
| 45 | 354.8 | 207.2 | 310.4 | 141.6 | 251.2 | 157.2 | 199.2 | 144.8 | 153.6 | 134.8 | |||||||||
| LXPL-FSF-70L | RTSL3-70 -240Y (70HP) | 1 | 35 | 115.9 | 44.2 | 95.8 | 43.9 | 78.1 | 40.1 | 62.7 | 36.7 | 49.4 | 33.9 | 100 | Φ28 | Φ89 | Φ54 | Φ28 | 2500×1000×1600 |
| 40 | 1094 | 50.7 | 92.7 | 46.4 | 75.3 | 42.4 | 60.2 | 39.0 | 47.0 | 36.3 | |||||||||
| 45 | 102.1 | 59.5 | 89.3 | 49.5 | 72.3 | 45.4 | 57.4 | 47.0 | 44.4 | 35.9 | |||||||||
| LXPL-BFSF2 -140L | 2 | 35 | 231.8 | 88.4 | 191.6 | 87.8 | 156.2 | 80.2 | 125.4 | 73.4 | 98.8 | 67.8 | 200 | Φ35 | Φ133 | Φ89 | Φ42 | 2500×2100×1850 | |
| 40 | 218.8 | 101.4 | 185.4 | 92.8 | 150.6 | 84.8 | 120.4 | 78.0 | 94.0 | 72.6 | |||||||||
| 45 | 204.2 | 119.0 | 178.6 | 99.0 | 144.6 | 90.8 | 114.8 | 94.0 | 88.8 | 79.0 | |||||||||
| LXPL-BFSF3 -210L | 3 | 35 | 347.7 | 132.6 | 287.4 | 131.7 | 234.3 | 120.3 | 188.1 | 110. | 148.2 | 101.7 | 300 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3200×2000×1850 | |
| 40 | 328.2 | 152.1 | 278.1 | 139.2 | 225.9 | 127.2 | 180.6 | 117.0 | 141.0 | 108.9 | |||||||||
| 45 | 306.3 | 178.3 | 267.9 | 148.5 | 216.9 | 136.2 | 177.2 | 141.0 | 133.2 | 118.5 | |||||||||
| LXPL-BFSF4 -280L | 4 | 35 | 463.6 | 176.8 | 383.2 | 175.6 | 321.4 | 160.4 | 250.8 | 146.8 | 197.6 | 135.6 | 400 | Φ54 | Φ133 ×2 | Φ108 | Φ67 | 3900×2000×1850 | |
| 40 | 473.6 | 202.8 | 378.0 | 185.6 | 301.2 | 169.6 | 240.8 | 156.0 | 188.0 | 145.2 | |||||||||
| 45 | 408.4 | 238.0 | 357.2 | 198.0 | 289.2 | 181.6 | 229.6 | 188.0 | 177.6 | 158.0 | |||||||||
| LXPL-FSF-80L | RTSL3-80 -270Y (80HP) | 1 | 35 | 130.6 | 50.0 | 108.3 | 50.0 | 88.4 | 45.3 | 71.1 | 41.7 | 56.0 | 38.8 | 120 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 123.4 | 57.4 | 104.7 | 52.5 | 85.2 | 48.1 | 68.2 | 44.5 | 53.4 | 41.8 | |||||||||
| 45 | 115.2 | 67.3 | 101.0 | 56.1 | 81.8 | 51.5 | 65.1 | 47.9 | 54.0 | 45.4 | |||||||||
| LXPL-BFSF2 -160L | 2 | 35 | 261.2 | 100.0 | 216.6 | 100.0 | 176.8 | 90.6 | 142.2 | 83.4 | 112.0 | 77.6 | 250 | Φ35 | Φ133 | Φ89 | Φ42 | 2500×2000×1850 | |
| 40 | 246.8 | 114.8 | 209.4 | 105.0 | 170.4 | 96.2 | 136.4 | 89.0 | 106.8 | 83.6 | |||||||||
| 45 | 230.4 | 134.6 | 202.0 | 112.2 | 163.6 | 103.0 | 130.2 | 95.8 | 100.8 | 90.8 | |||||||||
| LXPL-BFSF3 -240L | 3 | 35 | 391.8 | 150.0 | 324.9 | 150.0 | 265.2 | 135.9 | 213.3 | 125. | 168.0 | 116.4 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 4100×1950×1750 | |
| 40 | 370.2 | 172.2 | 314.1 | 157.5 | 255.6 | 144.3 | 204.6 | 133.5 | 160.2 | 125.4 | |||||||||
| 45 | 345.6 | 201.9 | 303.0 | 168.3 | 245.4 | 154.5 | 195.3 | 143.7 | 151.2 | 136.2 | |||||||||
| LXPL-BFSF4 -320L | 4 | 35 | 522.4 | 200.0 | 433.2 | 200.0 | 353.6 | 181.2| | 284.4 | 166.8 | 224.0 | 155.2 | 500 | Φ54 | Φ133 ×2 | Φ108 | Φ67 | 4950×1950×1800 | |
| 40 | 493.6 | 229.6 | 418.8 | 210.0 | 340.8 | 192.4 | 27.2.8 | 178.0 | 213.6 | 167.2 | |||||||||
| 45 | 460.8 | 269.2 | 404.0 | 224.4 | 327.2 | 206.0 | 260.4 | 191.6 | 201.6 | 181.6 | |||||||||
| Model Satuan | Com,Mode | Com, Keakuratan | Kondensasi suhu. (℃) | Suhu Penguapan. (℃) | Wadukr (kiri) | Pasokan pipa (mm) | Hisap pipa (mm) | Jalan Keluar Gas pipa (mm) | cair pipa masuk (mm) | Dimensi (mm) (PxL×T) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-FSF-90L | RTSL4-90 -300 tahun (90HP) | 1 | 35 | 144.4 | 55.1 | 119.7 | 55.8 | 97.7 | 51.3 | 78.5 | 47.3 | 61.9 | 44.0 | 150 | Φ28 | Φ89 | Φ67 | Φ28 | 2600×1000×1600 |
| 40 | 136.4 | 63.2 | 115.8 | 59.2 | 94.2 | 54.4 | 75.4 | 50.4 | 59.0 | 47.2 | |||||||||
| 45 | 127.4 | 74.0 | 111.7 | 62.9 | 90.5 | 58.1 | 72.0 | 54.0 | 55.7 | 51.2 | |||||||||
| LXPL-BFSF2 -180L | 2 | 35 | 288.8 | 110.2 | 239.4 | 111.6 | 195.4 | 102.6 | 157.0 | 94.6 | 123.8 | 88.0 | 250 | Φ42 | Φ133 | Φ89 | Φ54 | 2500×2100×1850 | |
| 40 | 272.8 | 126.4 | 231.6 | 118.4 | 188.4 | 108.8 | 150.8 | 100.8 | 118.0 | 94.4 | |||||||||
| 45 | 254.8 | 148.0 | 223.4 | 125.8 | 151.0 | 116.2 | 144.0 | 108.0 | 111.4 | 102.4 | |||||||||
| LXPL-BFSF3 -270L | 3 | 35 | 433.2 | 165.3 | 359.1 | 167.4 | 293.1 | 153.9 | 235.5 | 141.9 | 185.7 | 132.0 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3200×2100×1900 | |
| 40 | 409.2 | 189.6 | 347.4 | 177.6 | 282.6 | 163.2 | 226.2 | 151.2 | 177.0 | 161.4 | |||||||||
| 45 | 382.2 | 222.0 | 335.1 | 188.7 | 271.5 | 174.3 | 216.0 | 162.0 | 167.1 | 153.6 | |||||||||
| LXPL-BFSF4 -360L | 4 | 35 | 577.6 | 220.4 | 478.8 | 2232 | 390.8 | 205.2 | 314.0 | 189.2 | 247.6 | 176.0 | 500 | Φ54 | Φ133 ×2 | Φ133 | Φ67 | 4000×2100×1900 | |
| 40 | 545.6 | 252.8 | 463.2 | 236.8 | 376.8 | 217.6 | 301.6 | 201.6 | 236.0 | 188.8 | |||||||||
| 45 | 509.6 | 296.0 | 446.8 | 251.6 | 362.0 | 232.4 | 288.0 | 215.0 | 222.8 | 204.8 | |||||||||
| LXPL-FSF -100L | RTSL5-100 -360Y (100HP) | 1 | 35 | 175.1 | 66.8 | 145.0 | 66.1 | 118.3 | 60.5 | 95.1 | 55.5 | 74.9 | 51.4 | 150 | Φ35 | Φ89 | Φ67 | Φ35 | 2600×1000×1600 |
| 40 | 165.6 | 76.6 | 140.4 | 70.0 | 114.2 | 64.2 | 91.3 | 59.2 | 71.4 | 55.4 | |||||||||
| 45 | 154.7 | 89.9 | 135.4 | 74.4 | 109.7 | 68.8 | 87.1 | 63.9 | 67.5 | 60.3 | |||||||||
| LXPL-BFSF2 -200L | 2 | 35 | 350.2 | 133.6 | 290.0 | 132.2 | 236.6 | 121.0 | 190.2 | 111.0 | 149.8 | 1028 | 300 | Φ42 | Φ133 | Φ108 | Φ54 | 2500×2100×1850 | |
| 40 | 331.2 | 153.2 | 280.8 | 140.0 | 228.4 | 128.4 | 182.6 | 118.4 | 142.8 | 110.8 | |||||||||
| 45 | 309.4 | 179.8 | 270.8 | 148.8 | 219.4 | 137.6 | 174.2 | 127.8 | 135.0 | 120.6 | |||||||||
| LXPL-FSF3 -300L | 3 | 35 | 525.3 | 200.4 | 435.0 | 198.3 | 354.9 | 181.5 | 285.3 | 166.5 | 224.7 | 154.2 | 500 | Φ54 | Φ133 ×2 | Φ108 | Φ67 | 3200×2150×1900 | |
| 40 | 496.8 | 2298 | 421.2 | 210.0 | 342.6 | 192.6 | 273.9 | 177.6 | 214.2 | 166.2 | |||||||||
| 45 | 464.1 | 269.7 | 406.2 | 223.2 | 329.1 | 2064 | 261.3 | 191.7 | 202.5 | 180.9 | |||||||||
| LXPL-BFSF4 -400L | 4 | 35 | 700.4 | 267.2 | 580.0 | 264.4 | 473.2 | 242.0 | 380.4 | 222.0 | 299.6 | 205.6 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 4000×2150×1900 | |
| 40 | 622.4 | 306.4 | 561.6 | 280.0 | 456.8 | 256.8 | 365.2 | 236.8 | 285.6 | 221.6 | |||||||||
| 45 | 618.8 | 359.6 | 541.6 | 297.8 | 438.8 | 275.2 | 348.4 | 255.6 | 270.0 | 241.2 | |||||||||
| LXPL-FSF -125L | RTSL6-125 -480Y (125HP) | 1 | 35 | 218.5 | 93.0 | 184.2 | 85.4 | 149.9 | 80.5 | 120.6 | 74.6 | 95.5 | 73.2 | 200 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 213.1 | 97.5 | 179.3 | 92.4 | 145.5 | 87.3 | 116.5 | 83.0 | 91.0 | 79.5 | |||||||||
| 45 | 207.4 | 105.4 | 173.7 | 100.1 | 140.4 | 94.8 | 111.8 | 90.2 | 86.6 | 86.4 | |||||||||
| LXPL-BFSF2 -250L | 2 | 35 | 437.0 | 180.6 | 368.4 | 170.7 | 299.9 | 160.9 | 241.1 | 152.7 | 190.9 | 146.4 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 2500×2000×1850 | |
| 40 | 426.4 | 195.0 | 358.6 | 184.8 | 290.1 | 174.6 | 233.1 | 166.1 | 182.0 | 159.0 | |||||||||
| 45 | 414.8 | 210.8 | 347.4 | 200.2 | 280.8 | 189.6 | 223.5 | 180.4 | 173.2 | 173.8 | |||||||||
| LXPL-BFSF3 -375L | 3 | 35 | 655.5 | 270.9 | 522.7 | 256.1 | 449.8 | 241.4 | 361.7 | 229.1 | 286.4 | 219.7 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 4100×1950×1750 | |
| 40 | 639.3 | 292.5 | 537.8 | 277.2 | 436.5 | 261.9 | 349.6 | 249.1 | 273.1 | 238.6 | |||||||||
| 45 | 622.2 | 316.2 | 521.1 | 300.3 | 421.2 | 284.4 | 335.3 | 270.6 | 259.8 | 259.2 | |||||||||
| LXPL-BFSF4 -500L | 4 | 35 | 874.0 | 361.2 | 736.9 | 341,5! | 599.8 | 321.9 | 482.3 | 305.5 | 381.9 | 292.9 | 800 | Φ76 | Φ159 ×2 | Φ133 | Φ89 | 4950×1950×1800 | |
| 40 | 825.4 | 390.0 | 717.1 | 3696 | 5820 | 349.2 | 466.2 | 3322 | 364.0 | 318.1 | |||||||||
| 45 | 829.6 | 421.6 | 694.8 | 400.4 | 561.6 | 379.2 | 447.1 | 306.8 | 346.4 | 345.6 | |||||||||
