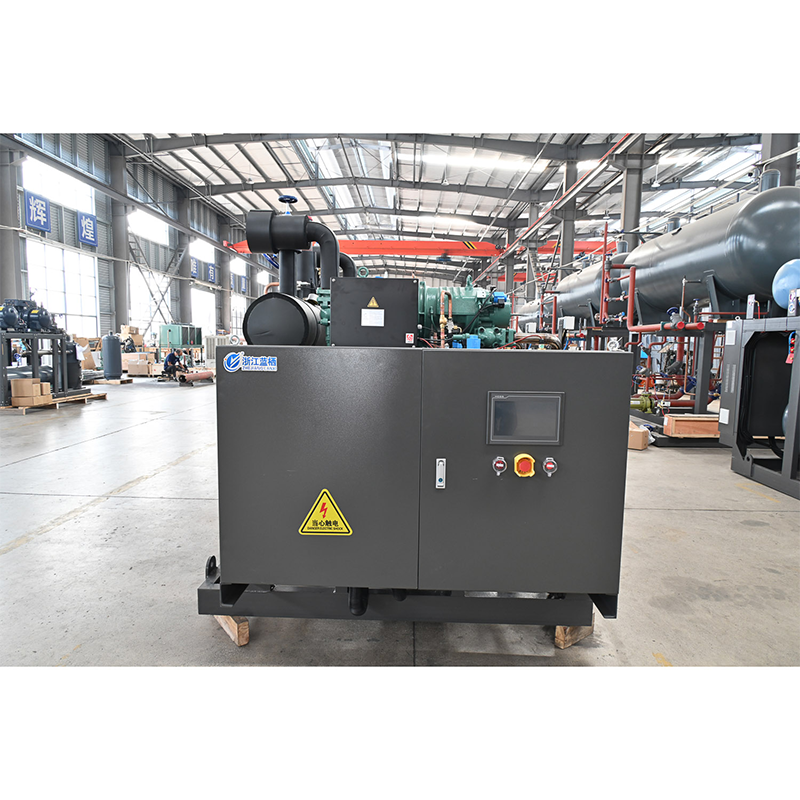

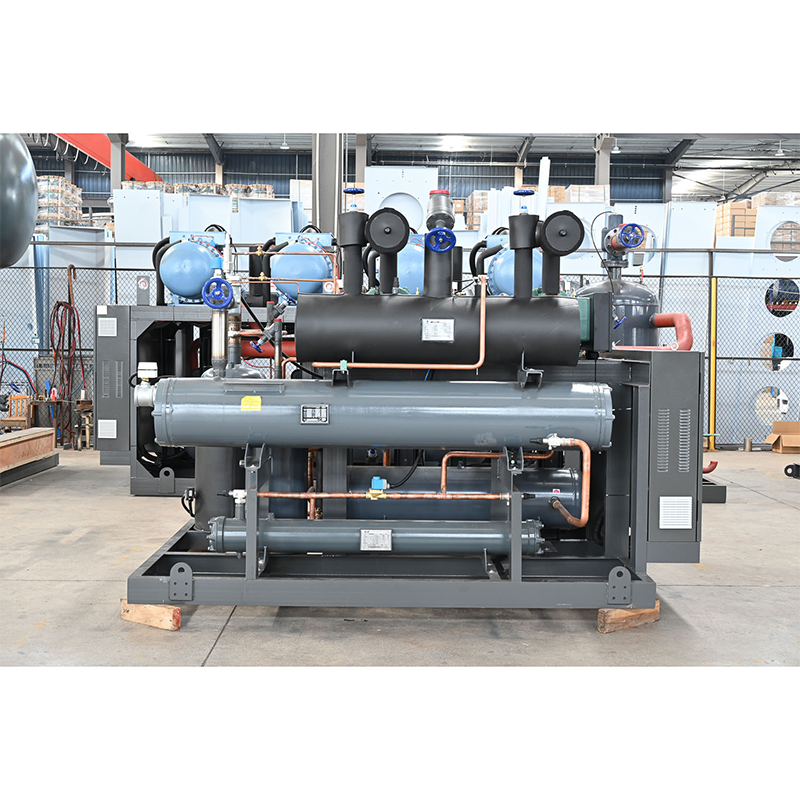

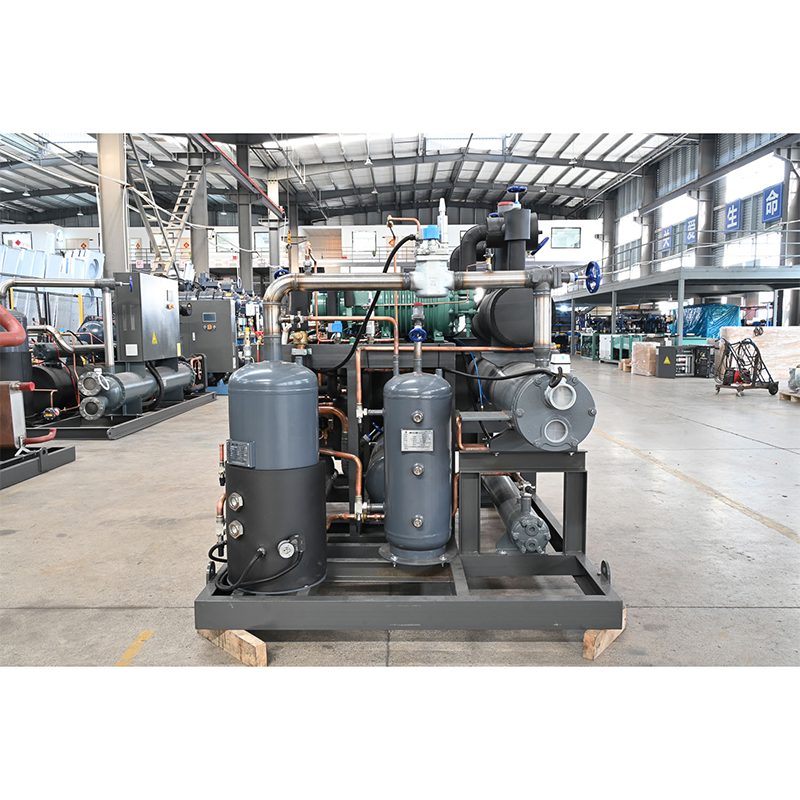

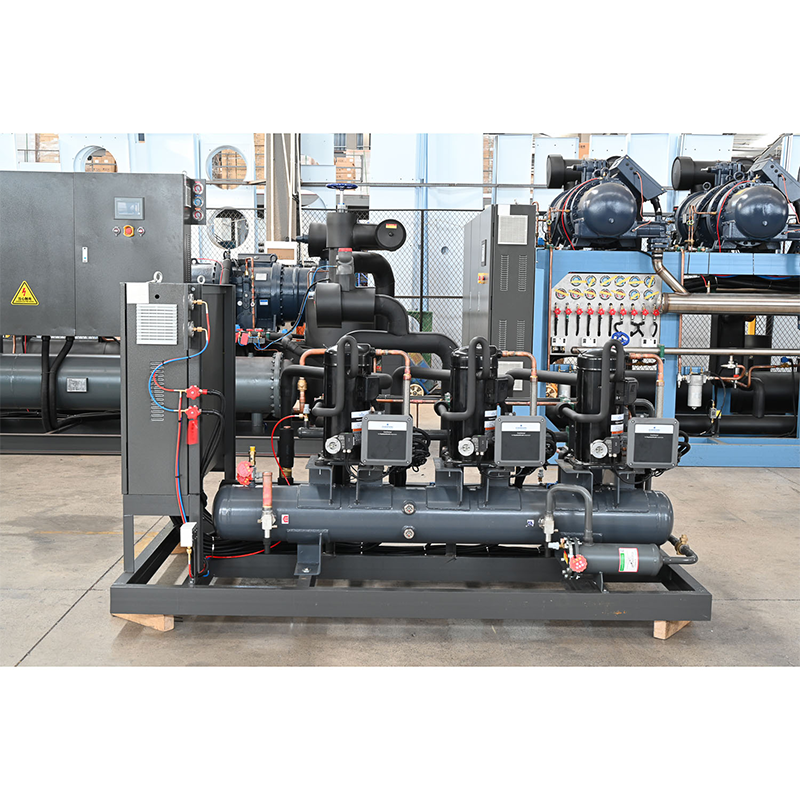

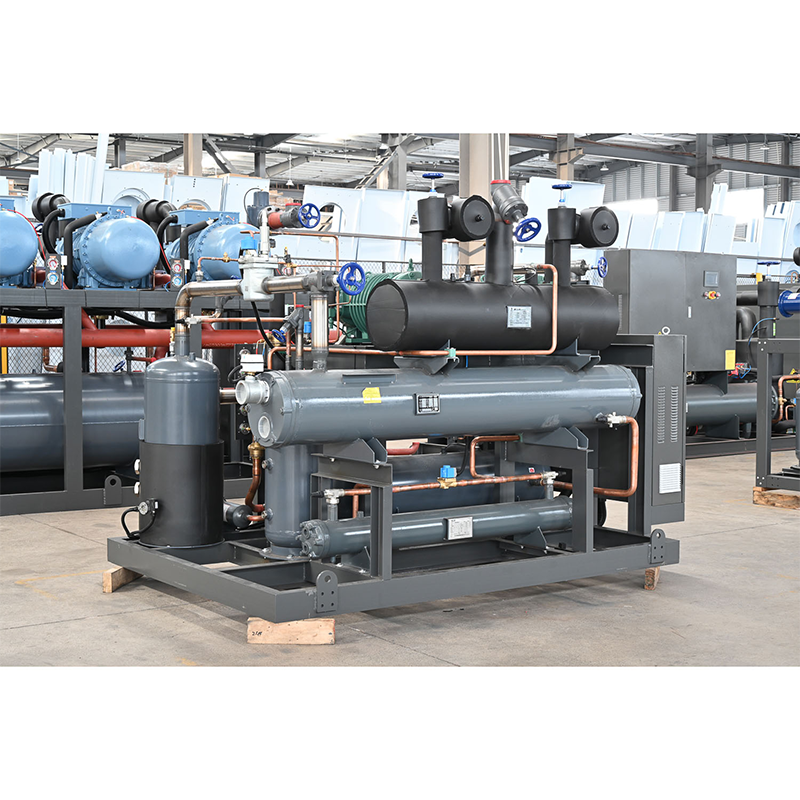

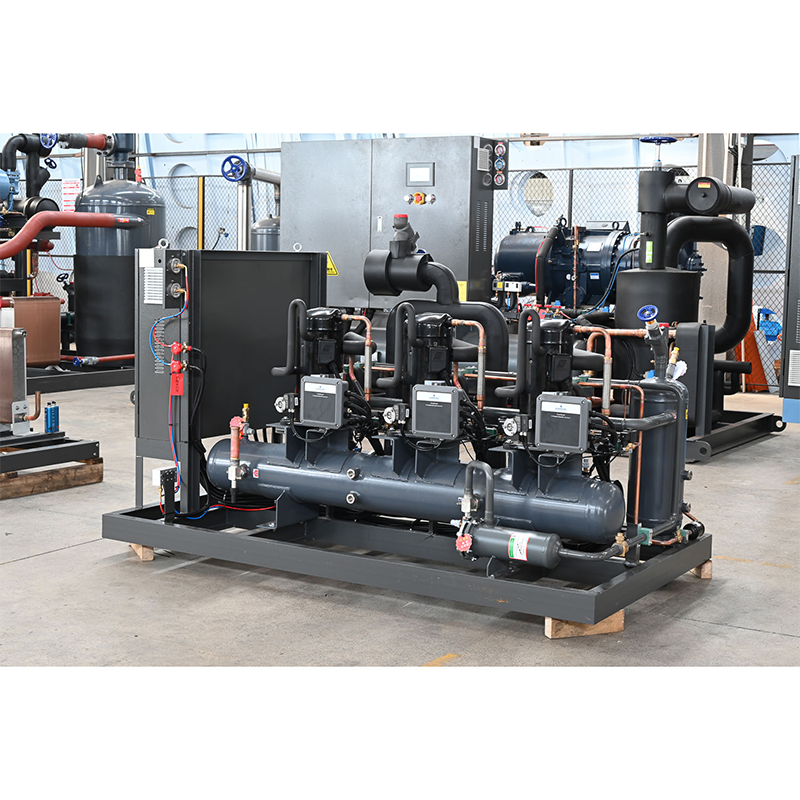

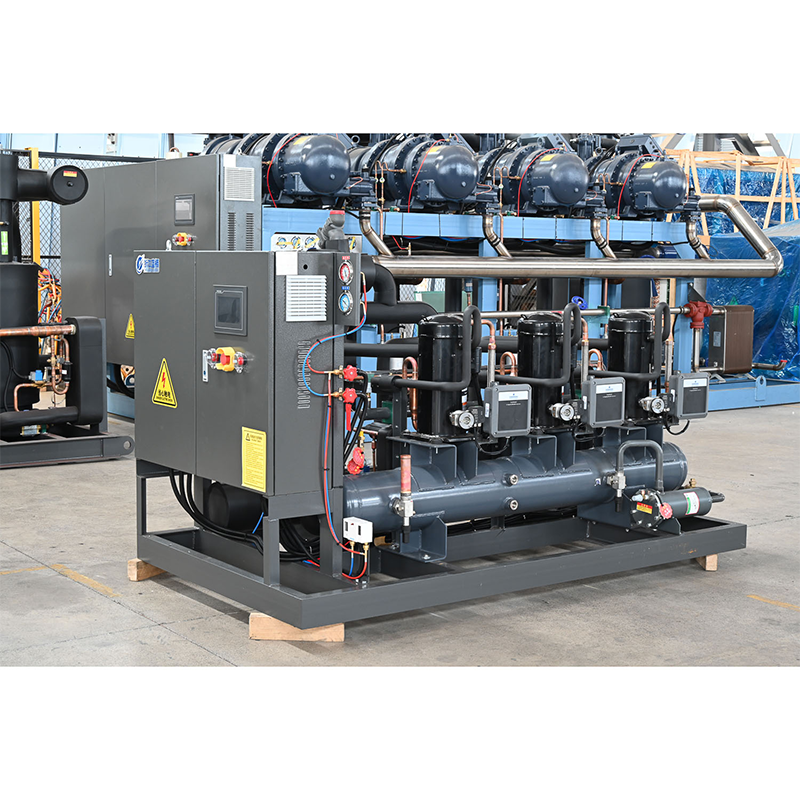

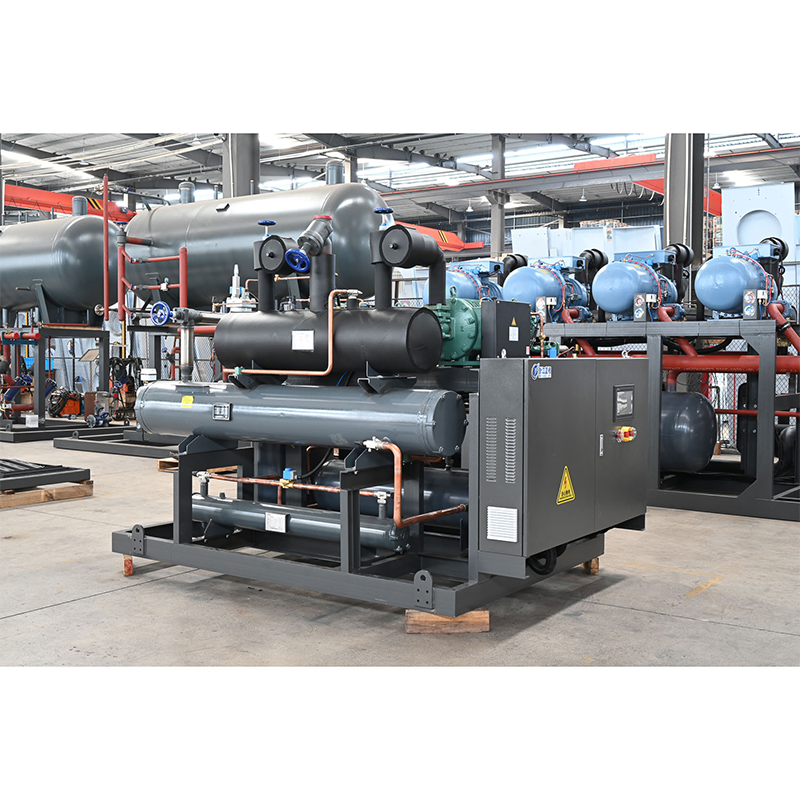

Unit sekrup suhu rendah RFC
Unit sekrup suhu rendah RFC adalah sistem pendingin efisiensi tinggi yang dirancang khusus untuk lingkungan bersuhu rendah. Ini banyak digunakan dalam industri seperti makanan, farmasi, bahan kimia, dan elektronik untuk kebutuhan pendinginan dan pendinginan suhu rendah. Unit ini menggunakan kompresor sekrup sebagai komponen intinya, menawarkan stabilitas yang kuat, kebisingan rendah, dan efisiensi tinggi. Unit sekrup suhu rendah seri RFC memberikan kinerja pendinginan yang berkelanjutan dan stabil, memastikan efisiensi dan keandalan tinggi bahkan dalam kondisi suhu rendah yang ekstrem.
Kompresor unit ini menggunakan teknologi canggih internasional, memberikan rasio efisiensi energi yang lebih tinggi dan tingkat kegagalan yang lebih rendah. Hal ini memastikan kinerja suhu rendah yang luar biasa sekaligus mengurangi konsumsi energi, membantu pengguna menghemat biaya operasional.
Unit sekrup suhu rendah RFC dirancang dengan mempertimbangkan keramahan lingkungan, menggunakan zat pendingin ramah lingkungan yang mematuhi standar perlindungan lingkungan internasional. Ia juga menawarkan kemampuan start-up suhu rendah yang kuat dan kemampuan beradaptasi yang luas. Selain itu, unit ini dilengkapi dengan sistem kontrol cerdas yang dapat memantau status pengoperasian peralatan secara real-time dan secara otomatis menyesuaikan parameter pengoperasian, memastikan kinerja yang baik pada beban yang bervariasi.
Untuk meningkatkan umur panjang dan keamanan, unit sekrup suhu rendah RFC dilengkapi dengan beberapa fitur perlindungan keselamatan, seperti perlindungan kelebihan beban, perlindungan kompresor yang terlalu panas, dan perlindungan kekurangan oli. Langkah-langkah ini secara efektif mengurangi risiko kegagalan tak terduga dan memastikan pengoperasian peralatan yang stabil.
Pengenalan Parameter Peralatan
Tampilan Detail
Hubungi Kami
Pengenalan Parameter Peralatan
| Model Satuan | Kamera.Model (RFC) | Com, Keakuratan | Kondensasi suhu.,(℃) | Suhu Penguapan 《℃) | Waduk (kiri) | Pipa pasokan (mm) | Pipa hisap (mm) | Pipa Keluaran Gas (mm) | cair pipa masuk (mm) | Dimensi (mm) (PxL×T) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-RFCF-30L | SLD120 -30 (30HP) | 1 | 35 | 58.7 | 19.8 | 48.8 | 19.1 | 40.1 | 18.4 | 32.5 | 17.9 | 25.8 | 15.6 | 80 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 55.9 | 24.0 | 46.3 | 22.8 | 37.0 | 21.5 | 29.7 | 20.9 | 23.0 | 20.0 | |||||||||
| 45 | 53.4 | 26.2 | 43.4 | 25.8 | 35.3 | 24.8 | 26.9 | 24.3 | 20.3 | 23.5 | |||||||||
| LXPL-BRFCF2 -60L | 2 | 35 | 117.4 | 39.6 | 97.6 | 38.2 | 80.2 | 368 | 65.0 | 35.8 | 51.6 | 35.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1650×1700 | |
| 40 | 111.8 | 48.0 | 92.6 | 45.6 | 74.0 | 43.0 | 59.4 | 41.8 | 46.0 | 40.0 | |||||||||
| 45 | 106.8 | 52.4 | 86.8 | 51.6 | 70.6 | 49.6 | 53.8 | 48.6 | 40.8 | 47.0 | |||||||||
| LXPL-BRFCF3 -90L | 3 | 35 | 176.1 | 59.4 | 146.4 | 57.3 | 120.3 | 55.2 | 97.5 | 53.7 | 77.4 | 52.8 | 200 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 167.7 | 72.0 | 138.9 | 68.4 | 111.0 | 64.5 | 89.1 | 62.7 | 69.0 | 60.0 | |||||||||
| 45 | 160.2 | 78.6 | 130.2 | 77.4 | 105.9 | 74.4 | 80.7 | 72.9 | 61.2 | 70.5 | |||||||||
| LXPL-BRFCF4 -120L | 4 | 35 | 234.8 | 79.2 | 195.2 | 76.4 | 160.4 | 73.6 | 133.0 | 71.6 | 103.2 | 70.4 | 250 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 223.6 | 96.0 | 185.2 | 91.2 | 148.0 | 86.0 | 118.8 | 83.6 | 92.0 | 80.0 | |||||||||
| 45 | 213.6 | 104.8 | 173.6 | 103.2 | 1412 | 99.2 | 107.6 | 97.2 | 81.6 | 94.0 | |||||||||
| LXPL-RFCF-40L | SLD140 -40 (40HP) | 1 | 35 | 67.1 | 22.7 | 55.8 | 21.8 | 45.9 | 21.1 | 37.1 | 20.5 | 29.5 | 20.1 | 100 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 64.0 | 27.5 | 53.0 | 26.1 | 42.3 | 24.6 | 34.0 | 23.9 | 26.3 | 22.9 | |||||||||
| 45 | 61.1 | 30.0 | 49.6 | 29.6 | 40.4 | 28.4 | 30.8 | 27.9 | 23.4 | 26.9 | |||||||||
| LXPL-BRFCF2 -80L | 2 | 35 | 134.2 | 45.4 | 111.6 | 43.6 | 91.8 | 42.2 | 74.2 | 41.0 | 59.0 | 40.2 | 200 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 128.0 | 55.0 | 106.0 | 52.2 | 84.6 | 49.2 | 68.0 | 47.8 | 56.2 | 45.8 | |||||||||
| 45 | 122.2 | 60.0 | 99.2 | 59.2 | 80.8 | 56.8 | 61.6 | 55.8 | 46.8 | 53.8 | |||||||||
| LXPL-BRFCF3 -120L | 3 | 35 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 192.0 | 82.5 | 159.0 | 78.3 | 126.9 | 73.8 | 102.0 | 71.7 | 78.9 | 68.7 | |||||||||
| 45 | 183.3 | 90.0 | 148.8 | 88.8 | 121.2 | 85.2 | 92.4 | 83.7 | 70.2 | 80.7 | |||||||||
| LXPL-BRFCF4 -160L | 4 | 35 | 256.0 | 110.0 | 212.0 | 104.4 | 169.2 | 98.4 | 136.0 | 95.6 | 105.2 | 91.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | |||||||||
| 45 | 244.4 | 120.0 | 198.4 | 118.4 | 161.6 | 113.6 | 123.2 | 111.6 | 93.6 | 107.6 | |||||||||
| LXPL-RFCF-50L | SLD190 -50 (50HP) | 1 | 35 | 94.5 | 32.0 | 78.6 | 30.7 | 64.6 | 29.7 | 53.2 | 28.9 | 41.6 | 28.3 | 150 | Φ28 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 90.1 | 38.7 | 74.6 | 36.7 | 59.5 | 34.6 | 47.8 | 33.6 | 37.0 | 32.3 | |||||||||
| 45 | 85.9 | 42.2 | 69.8 | 41.6 | 56.9 | 39.9 | 43.3 | 39.2 | 32.9 | 37.8 | |||||||||
| LXPL-BRFCF2 -100L | 2 | 35 | 189.0 | 64.0 | 157.2 | 61.4 | 1292 | 59.4 | 104.6 | 57.8 | 83.2 | 56.6 | 200 | Φ35 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 180.2 | 77.4 | 149.2 | 73.4 | 119.0 | 692 | 95.6 | 67.2 | 74.0 | 64.6 | |||||||||
| 45 | 171.8 | 84.4 | 139.6 | 83.2 | 113.8 | 798 | 86.6 | 78.4 | 65.8 | 756 | |||||||||
| LXPL-BRFCF3 -150L | 3 | 35 | 283.5 | 96.0 | 235.8 | 92.1 | 193.8 | 89.1 | 156.9 | 86.7 | 124.8 | 84.9 | 250 | Φ45 | Φ108 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 270.3 | 116.1 | 223.8 | 110.1 | 178.5 | 103.8 | 143.4 | 100.8 | 111.0 | 96.9 | |||||||||
| 45 | 257.7 | 126.6 | 209.4 | 124.8 | 170.7 | 119.7 | 129.9 | 117.6 | 98.7 | 113.4 | |||||||||
| LXPL-BRFCF4 -200L | 4 | 35 | 378.0 | 128.0 | 314.4 | 122.8 | 258.4 | 118.8 | 209.2 | 115.6 | 166.4 | 113.2 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 360.4 | 154.8 | 298.4 | 146.8 | 238.0 | 138.4 | 191.2 | 134.4 | 148.0 | 129.2 | |||||||||
| 45 | 343.6 | 166.8 | 279.2 | 166.4 | 227.6 | 159.6 | 173.2 | 156.8 | 131.6 | 151.2 | |||||||||
| Model Satuan | Com.Model (RFC) | Com. Keakuratan | Kondensasi suhu. (℃) | Suhu Penguapan. (℃) | Waduk (kiri) | Pipa pasokan (mm) | Pipa hisap (mm) | Pipa Keluaran Gas (mm) | cair pipa masuk (mm) | Dimensi (mm) (P×L×T) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-RFCF-60L | SLD210 -60 (60HP) | 1 | 35 | 104.4 | 35.3 | 86.8 | 34.0 | 71.3 | 32.8 | 57.8 | 31.9 | 45.9 | 31.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 99.5 | 42.8 | 82.5 | 40.5 | 65.8 | 38.3 | 529 | 37.1 | 40.9 | 35.7 | |||||||||
| 45 | 95.0 | 46.7 | 77.2 | 46.0 | 62.9 | 44.1 | 47.8 | 433 | 36.4 | 41.8 | |||||||||
| LXPL-BRFCF2 -120L | 2 | 35 | 208.8 | 70.6 | 173.6 | 68.0 | 142.6 | 65.6 | 115.6 | 63.8 | 91.8 | 624 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 199.0 | 85.6 | 165.0 | 81.0 | 131.6 | 76.6 | 105.8 | 74.2 | 81.8 | 71.4 | |||||||||
| 45 | 190.0 | 93.4 | 154.4 | 92.0 | 1258 | 88.2 | 956 | 86.6 | 72.8 | 836 | |||||||||
| LXPL-BRFCF3 -180L | 3 | 35 | 313.2 | 105.9 | 260.4 | 102.0 | 213.9 | 98.4 | 173.4 | 95.7 | 137.7 | 936 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 298.5 | 128.4 | 247.5 | 121.5 | 197.4 | 114.9 | 158.7 | 111.3 | 122.7 | 107.1 | |||||||||
| 45 | 285.0 | 140.1 | 231.6 | 138.0 | 188.7 | 1323 | 143.4 | 129.9 | 109.2 | 125.4 | |||||||||
| LXPL-BRFCF4 -240L | 4 | 35 | 417.6 | 141.2 | 347.2 | 136.0 | 285.2 | 131.2 | 231.2 | 127.6 | 1836 | 124.8 | 300 | Φ57 | Φ108 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 398.0 | 171.2 | 330.0 | 162.0 | 263.2 | 153.2 | 211.6 | 148.4 | 1636 | 1428 | |||||||||
| 45 | 380.0 | 186.8 | 308.8 | 184.0 | 251.6 | 1764 | 191.2 | 173.2 | 1456 | 167.2 | |||||||||
| LXPL-RFCF-70L | SLD230 -70 (70HP) | 1 | 35 | 116.8 | 39.5 | 97.2 | 38.0 | 79.8 | 36.7 | 64.7 | 35.7 | 51.4 | 35.0 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 111.4 | 47.9 | 82.3 | 45.4 | 73.7 | 42.8 | 592 | 41.5 | 45.7 | 39.9 | |||||||||
| 45 | 106.3 | 52.2 | 86.4 | 51.5 | 70.4 | 49.4 | 53.5 | 48.5 | 40.7 | 46.8 | |||||||||
| LXPL-BRFCF2 -140L | 2 | 35 | 233.6 | 79.0 | 194.4 | 76.0 | 159.6 | 73.4 | 129.4 | 71.4 | 1028 | 70.0 | 250 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 222.8 | 95.8 | 174.6 | 90.8 | 147.4 | 85.6 | 118.4 | 83.0 | 91.4 | 79.8 | |||||||||
| 45 | 212.6 | 104.4 | 172.8 | 103.0 | 140.8 | 98.8 | 107.0 | 97.0 | 81.4 | 93.6 | |||||||||
| LXPL-BRFCF3 -210L | 3 | 35 | 350.4 | 118.5 | 291.6 | 114.0 | 239.4 | 110.1 | 194.1 | 107.1 | 154.2 | 105.0 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 334.2 | 143.7 | 276.9 | 136.5 | 221.1 | 128.4 | 177.6 | 124.5 | 137.1 | 119.7 | |||||||||
| 45 | 318.9 | 156.6 | 259.2 | 154.5 | 211.2 | 148.2 | 160.5 | 145.5 | 122.1 | 140.4 | |||||||||
| LXPL-BRFCF4 -280L | 4 | 35 | 467.2 | 158.0 | 388.8 | 152.0 | 319.2 | 146.8 | 258.8 | 142.8 | 205.6 | 140.0 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 445.6 | 191.6 | 369.2 | 181.6 | 294.8 | 171.2 | 236.8 | 166.0 | 1828 | 159.6 | |||||||||
| 45 | 425.2 | 208.8 | 3456 | 206.0 | 281.6 | 197.6 | 214.0 | 194.0 | 1628 | 187.2 | |||||||||
| LXPL-RFCF-75L | SLD250 -75 (75HP) | 1 | 35 | 124.3 | 42.0 | 103.4 | 40.4 | 84.9 | 39.0 | 68.8 | 38.0 | 54.7 | 37.2 | 200 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 118.5 | 50.9 | 98.2 | 48.3 | 78.4 | 45.6 | 62.9 | 44.2 | 48.6 | 42.5 | |||||||||
| 45 | 113.1 | 55.5 | 91.9 | 54.8 | 74.9 | 52.5 | 57.0 | 51.6 | 43.3 | 49.7 | |||||||||
| LXPL-BRFCF2 -150L | 2 | 35 | 248.6 | 84.0 | 206.8 | 80.8 | 1698 | 78.0 | 137.6 | 76.0 | 109.4 | 74.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 237.0 | 1018 | 196.4 | 96.6 | 1568 | 91.2 | 1258 | 88.4 | 97.2 | 85.0 | |||||||||
| 45 | 226.2 | 111.0 | 183.8 | 109.6 | 149.8 | 105.0 | 114.0 | 103.2 | 86.6 | 99.4 | |||||||||
| LXPL-BRFCF3 -225L | 3 | 35 | 372.9 | 126.0 | 310.2 | 121.2 | 254.7 | 117.0 | 206.4 | 114.0 | 164.1 | 111.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 355.5 | 152.7 | 294.6 | 144.9 | 235.2 | 136.8 | 188.7 | 132.6 | 145.8 | 127.5 | |||||||||
| 45 | 339.3 | 166.5 | 375.7 | 164.4 | 244.7 | 157.5 | 171.0 | 154.8 | 129.9 | 149.1 | |||||||||
| LXPL-BRFCF4 -300L | 4 | 35 | 497.2 | 168.0 | 413.6 | 161.6 | 339.6 | 156.0 | 275.3 | 152.0 | 218.8 | 148.8 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 474.0 | 203.6 | 392.8 | 193.2 | 313.6 | 182.4 | 251.6 | 176.8 | 194.4 | 170.0 | |||||||||
| 45 | 452.4 | 222.0 | 367.6 | 219.2 | 299.6 | 210.0 | 228.0 | 2064 | 173.2 | 198.8 | |||||||||
| Model Satuan | Kamera.Model (RFC) | Com, Keakuratan | Kondensasi suhu. (℃) | Suhu Penguapan. (℃) | Wadukr (kiri) | Pipa pasokan (mm) | Hisap pipa (mm) | Jalan Keluar Gas pipa (mm) | cair pipa masuk (mm) | Dimensi (mm) (PxL×T) | |||||||||
| -20 | -25 | -30 -35 | -40 | ||||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-RFCF-80L | SLD290 -80 (80HP) | 1 | 35 | 144.7 | 48.9 | 120.3 | 47.1 | 98.9 | 45.4 | 80.1 | 44.2 | 63.7 | 43.3 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 137.9 | 59.3 | 114.3 | 56.2 | 91.2 | 53.0 | 73.3 | 51.4 | 56.6 | 49.4 | |||||||||
| 45 | 131.6 | 64.7 | 106.9 | 63.7 | 87.1 | 61.1 | 66.3 | 60.0 | 50.4 | 57.9 | |||||||||
| LXPL-BRFCF2 -180L | 2 | 35 | 289.4 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 160.2 | 88.4 | 127.4 | 86.6 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2000×1800 | |
| 40 | 275.8 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 146.6 | 102.8 | 113.2 | 98.8 | |||||||||
| 45 | 263.2 | 129.4 | 213.8 | 127.4 | 174.2 | 122.2 | 132.6 | 120.0 | 100.8 | 115.8 | |||||||||
| LXPL-BRFCF3 -240L | 3 | 35 | 434.1 | 146.7 | 360.9 | 141.3 | 196.7 | 136.2 | 240.3 | 132.6 | 191.1 | 129.9 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 413.7 | 177.9 | 342.9 | 168.6 | 273.6 | 159.0 | 219.9 | 154.2 | 169.8 | 148.2 | |||||||||
| 45 | 394.8 | 194.1 | 320.7 | 191.1 | 261.3 | 183.3 | 198.9 | 180.0 | 151.2 | 173.7 | |||||||||
| XPL-BRFCF4 -320L | 4 | 35 | 578.8 | 195.6 | 481.2 | 188.4 | 395.6 | 181.6 | 320.4 | 176.8 | 254.8 | 173.2 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 551.6 | 237.2 | 457.2 | 224.8 | 364.8 | 212.0 | 293.2 | 205.6 | 226.4 | 197.6 | |||||||||
| 45 | 526.4 | 258.8 | 427.6 | 254.8 | 348.4 | 244.4 | 265.2 | 240.0 | 201.6 | 231.6 | |||||||||
| LXPL-RFCF -100L | SLD350 -100 (100HP) | 1 | 35 | 173.5 | 58.7 | 144.3 | 56.4 | 118.6 | 54.5 | 96.0 | 53.1 | 26.3 | 51.9 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 165.4 | 71.1 | 137.1 | 67.4 | 109.4 | 63.6 | 87.9 | 61.7 | 67.9 | 59.3 | |||||||||
| 45 | 157.9 | 77.5 | 128.2 | 76.4 | 104.5 | 73.3 | 79.5 | 72.0 | 60.4 | 69.4 | |||||||||
| LXPL-BRFCF2 -200L | 2 | 35 | 347.0 | 117.4 | 288.6 | 112.8 | 237.2 | 109.0 | 192.0 | 106.2 | 152.6 | 103.8 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2200×1800 | |
| 40 | 330.8 | 142.2 | 274.2 | 134.8 | 218.8 | 127.2 | 175.8 | 123.4 | 135.8 | 118.6 | |||||||||
| 45 | 315.8 | 155.0 | 256.4 | 152.8 | 209.0 | 146.6 | 159.0 | 144.0 | 120.8 | 138.8 | |||||||||
| LXPL-BRFCF3 -300L | 3 | 35 | 520.5 | 176.1 | 432.9 | 169.2 | 3558 | 163.5 | 288.0 | 159.3 | 228.9 | 155.7 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 496.2 | 213.3 | 411.3 | 202.2 | 328.2 | 190.8 | 263.7 | 185.1 | 203.7 | 177.9 | |||||||||
| 45 | 473.7 | 232.5 | 384.6 | 229.2 | 313.5 | 219.9 | 238.5 | 216.0 | 181.2 | 208.2 | |||||||||
| LXPL-BRFCF4 -400L | 4 | 35 | 694.0 | 234.8 | 577.2 | 225.6 | 474.4 | 218.0 | 384.0 | 212.4 | 30.52 | 2076 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 661.6 | 284.4 | 548.4 | 269.6 | 437.6 | 2932 | 351.6 | 216.8 | 271.6 | 237.2 | |||||||||
| 45 | 631.6 | 310.0 | 512.8 | 305.6 | 418.0 | 293.2 | 318.0 | 288.0 | 241.6 | 277.6 | |||||||||
| LXPL-RFCF -125L | SLD420 -125 (125HP) | 1 | 35 | 202.3 | 68.4 | 168.2 | 658 | 138.2 | 63.5 | 111.9 | 61.8 | 89.0 | 60.5 | 250 | Φ57 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 192.8 | 82.9 | 1598 | 785 | 127.5 | 74.1 | 102.4 | 71.9 | 79.2 | 69.1 | |||||||||
| 45 | 184.0 | 90.4 | 149.5 | 89.1 | 121.8 | 85.5 | 92.7 | 83.9 | 70.4 | 80.9 | |||||||||
| LXPL-BRFCF2 -250L | 2 | 35 | 404.6 | 1368 | 336.4 | 131.6 | 276.4 | 127.0 | 2238 | 123.6 | 178.0 | 121.0 | 400 | Φ76 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | |
| 40 | 385.6 | 1658 | 319.6 | 157.0 | 255.0 | 148.2 | 204.8 | 143.8 | 158.4 | 138.2 | |||||||||
| 45 | 368.0 | 180.8 | 299.0 | 178.2 | 243.6 | 171.0 | 158.4 | 167.8 | 140.8 | 161.8 | |||||||||
| LXPL-BRFCF3 -370L | 3 | 35 | 606.9 | 205.2 | 504.6 | 197.4 | 414.6 | 190.5 | 335.7 | 158.4 | 267.0 | 181.5 | 500 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 578.4 | 248.7 | 479.4 | 235.5 | 382.5 | 222.3 | 307.2 | 215.7 | 218.7 | 207.3 | |||||||||
| 45 | 552.0 | 271.2 | 448.5 | 267.3 | 365.4 | 256.5 | 378.1 | 251.7 | 211.2 | 242.7 | |||||||||
| LXPL-BRFCF4 -500L | 4 | 35 | 809.2 | 273.6 | 672.8 | 263.2 | 552.8 | 254.0 | 447.6 | 247.2 | 356.0 | 242.0 | 600 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 771.2 | 331.6 | 639.2 | 314.0 | 510.0 | 296.4 | 409.6 | 287.6 | 316.8 | 276.4 | |||||||||
| 45 | 736.0 | 361.6 | 598.0 | 356.4 | 487.2 | 342.0 | 370.8 | 355.6 | 281.6 | 323.6 | |||||||||
| Model Satuan | Com.Model (RFC) | Com. Keakuratan | Kondensasi suhu. (℃) | Suhu Penguapan. (℃) | Wadukr (kiri) | Pasokan pipa (mm) | Hisap pipa (mm) | Pipa Keluaran Gas (mm) | cair pipa masuk (mm) | Dimensi (mm) (P×L×T) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasitas Pendinginan/Input Daya (kw) | |||||||||||||||||||
| LXPL-RFCF -140L | SLD470 -140 (140HP) | 1 | 35 | 228.5 | 77.3 | 190.1 | 74.3 | 156.2 | 71.7 | 126.5 | 69.9 | 100.6 | 68.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 217.9 | 93.7 | 180.6 | 88.7 | 144.1 | 83.8 | 115.7 | 81.2 | 894 | 78.1 | |||||||||
| 45 | 207.9 | 102.1 | 168.9 | 100.7 | 137.6 | 96.6 | 104.7 | 94.8 | 79.6 | 91.5 | |||||||||
| LXPL-BRFCF2 -280L | 2 | 35 | 457.0 | 154.6 | 380.2 | 148.6 | 312.4 | 143.4 | 253.0 | 1398 | 201.2 | 136.8 | 400 | Φ57 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | |
| 40 | 4358 | 187.4 | 361.2 | 77.4 | 288.2 | 167.6 | 231.4 | 1624 | 178.8 | 156.2 | |||||||||
| 45 | 4158 | 204.2 | 337.8 | 201.4 | 275.2 | 193.2 | 209.4 | 1896 | 159.2 | 183.0 | |||||||||
| LXPL-BRFCF3 -420L | 3 | 35 | 685.5 | 231.9 | 570.3 | 222.9 | 468.6 | 213.3 | 379.5 | 209.7 | 301.8 | 2052 | 600 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 653.7 | 281.1 | 541.8 | 266.1 | 432.3 | 251.4 | 346.5 | 243.6 | 268.2 | 234.3 | |||||||||
| 45 | 623.7 | 306.3 | 506.7 | 302.1 | 412.8 | 289.8 | 314.1 | 284.4 | 238.8 | 274.5 | |||||||||
| LXPL-BRFCF4 -560L | 4 | 35 | 914.0 | 309.2 | 760.4 | 297.2 | 624.8 | 286.8 | 506.0 | 279.6 | 402.4 | 273.6 | 800 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 871.6 | 374.8 | 722.4 | 354.8 | 576.4 | 335.2 | 462.8 | 334.8 | 357.6 | 312.4 | |||||||||
| 45 | 831.6 | 408.4 | 675.6 | 402.8 | 550.4 | 386.4 | 418.8 | 379.2 | 318.4 | 366.0 | |||||||||
| LXPL-RFCF -160L | SLD520 -160 (160HP) | 1 | 35 | 2528 | 85.5 | 210.3 | 82.2 | 172.8 | 79.4 | 139.9 | 77.3 | 111.2 | 75.7 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1700×1800 |
| 40 | 241.0 | 103.6 | 199.7 | 98.2 | 159.4 | 92.7 | 128.1 | 89.9 | 98.9 | 86.4 | |||||||||
| 45 | 230.0 | 113.0 | 186.9 | 111.4 | 152.3 | 106.9 | 115.9 | 104.9 | 88.1 | 101.2 | |||||||||
| LXPL-BRFCF2 -320L | 2 | 35 | 505.6 | 171.0 | 420.6 | 164.4 | 345.6 | 158.8 | 279.8 | 154.6 | 222.4 | 151.4 | 500 | Φ76 | Φ133 | Φ89 | Φ76 | 3000×1800×1800 | |
| 40 | 482.0 | 202.7 | 399.4 | 196.4 | 318.8 | 185.4 | 1562 | 179.8 | 197.8 | 172.8 | |||||||||
| 45 | 460.0 | 226.0 | 373.8 | 222.8 | 304.6 | 213.8 | 231.8 | 209.8 | 176.2 | 202.4 | |||||||||
| LXPL-BRFCF3 -480L | 3 | 35 | 758.4 | 256.5 | 630.9 | 246.6 | 518.4 | 328.2 | 419.7 | 231.9 | 333.6 | 227.1 | 600 | Φ89 | Φ159 | Φ108 | Φ89 | 4100×2100×2500 | |
| 40 | 723.0 | 310.8 | 599.1 | 294.6 | 478.2 | 370.8 | 384.3 | 269.7 | 296.7 | 259.2 | |||||||||
| 45 | 690.0 | 339.0 | 560.7 | 334.2 | 4569 | 320.7 | 347.7 | 314.7 | 264.3 | 303.6 | |||||||||
| LXPL-BRFCF4 -640L | 4 | 35 | 1011.2: | 342..0 | 841.2 | 328.8 | 691.2 | 317.6 | 559.6 | 309.2 | 444.8 | 302.8 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4900×2300×2700 | |
| 40 | 964.0 | 414.4 | 798.8 | 392.8 | 637.6 | 370.8 | 512.4 | 3596 | 395.6 | 345.6 | |||||||||
| 45 | 920.0 | 452.0 | 747.6 | 445.6 | 6092 | 426.7 | 463.6 | 4196 | 352.4 | 404.8 | |||||||||
| LXPL-RFCF -200L | SLD640 -200 (200HP) | 1 | 35 | 317.3 | 107.3 | 263.9 | 1032 | 2168 | 99.6 | 175.6 | 97.0 | 139.6 | 95.0 | 300 | Φ57 | Φ108 | Φ76 | Φ76 | 2400×1700×1800 |
| 40 | 302.5 | 130.0 | 250.7 | 123.2 | 200.0 | 116.3 | 160.7 | 112.8 | 124.2 | 108.4 | |||||||||
| 45 | 288.6 | 141.8 | 234.5 | 139.8 | 191.1 | 134.1 | 145.4 | 131.7 | 110.5 | 127.0 | |||||||||
| LXPL-BRFCF2 -400L | 2 | 35 | 634.6 | 214.6 | 527.6 | 206.4 | 433.6 | 1992 | 351.2 | 194.0 | 279.2 | 190.0 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 3000×1800×1800 | |
| 40 | 605.0 | 260.0 | 501.4 | 246.4 | 400.0 | 232.6 | 321.4 | 225.6 | 248.4 | 216.8 | |||||||||
| 45 | 577.2 | 283.6 | 469.0 | 2796 | 382.2 | 268.2 | 321.4 | 2634 | 221.0 | 254.0 | |||||||||
| LXPL-BRFCF3 -600L | 3 | 35 | 951.9 | 321.9 | 791.7 | 309.6 | 650.4 | 298.8 | 526.8 | 291.0 | 418.8 | 285.0 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | |
| 40 | 907.5 | 390.0 | 752.1 | 369.6 | 600.0 | 348.9 | 482.1 | 338.4 | 372.6 | 325.2 | |||||||||
| 45 | 865.8 | 425.4 | 703.5 | 419.4 | 573.3 | 402.3 | 436.2 | 395.1 | 331.5 | 381.0 | |||||||||
| LXPL-BRFCF4 -B00L | 4 | 35 | 1269.2 | 429.2 | 1055.6 | 412.8 | 867.2 | 398.4 | 702.4 | 388.0 | 558.4 | 380.0 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | |
| 40 | 1210.0 | 520.0 | 1002.8 | 492.8 | 800.0 | 465.2 | 642.8 | 451.2 | 496.8 | 433.6 | |||||||||
| 45 | 1154,4! | 567.2 | 938.0 | 559.2 | 764.4 | 536.4 | 581.6 | 526.8 | 442.0 | 508.0 | |||||||||
Tampilan Detail
Hubungi Kami
TENTANG KAMI
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Sebagai China Unit sekrup suhu rendah RFC Pemasok dan Unit sekrup suhu rendah RFC Pabrik,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. mengkhususkan diri dalam solusi pendinginan yang efisien, hijau, dan berkelanjutan. Dengan memanfaatkan produk berkualitas tinggi dan teknologi inovatif, kami melayani sektor makanan, farmasi, kimia, dan logistik rantai dingin, menciptakan sistem yang hemat energi dan ramah lingkungan bagi pelanggan kami serta mendorong perkembangan yang saling menguntungkan bagi industri dan lingkungan.
Sertifikat Penghargaan
Berita
-
Masuklah ke ruang penyimpanan dingin dan rasakan udara di dekat pintu. Jika salah satu sudut lebih hangat dibandingkan sudut lainnya, atau suhu meningkat setiap sore, pendingin udara industri yang dipasang di dalam ruangan biasanya me...
BACA SELENGKAPNYA -
Ketika sebuah pabrik pengolahan makanan di wilayah yang kekurangan air mengevaluasi opsi pendinginannya, pilihan kondensor sering kali menentukan apakah proyek tersebut disetujui. Kondensor berpendingin udara sepenuhnya menghilangkan ...
BACA SELENGKAPNYA -
Saat mencari a produsen evaporator dan kondensor , Pendinginan Lanxi tentu patut Anda perhatikan. Dengan keunggulan khas dalam desain dan produksi kondensor, Lanxi Refrigeration menghadirkan kondensor yang memiliki kinerja pertuka...
BACA SELENGKAPNYA
HUBUNGI KAMI
TAUTAN CEPAT
PRODUK
INFORMASI KONTAK
- Email: [email protected]
- Telepon: +86-15258555916
- Alamat: 301 Punan Avenue, Jalan Pukou, Kota Shengzhou, Kota Shaoxing, Provinsi Zhejiang.China
Hak Cipta © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Hak Cipta Dilindungi.
浙ICP备2022034605号-1
Grosir Unit sekrup suhu rendah RFC Pabrik
